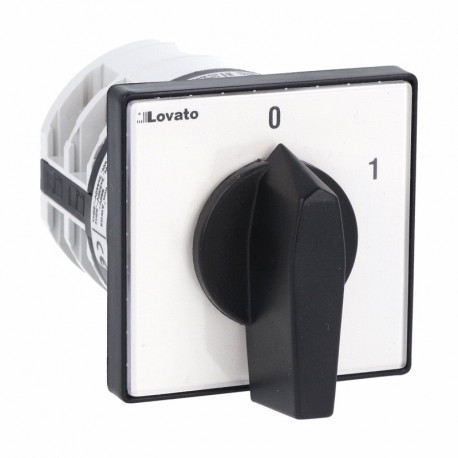

LOVATO ELECTRIC 7GN4003U 7GN4003U GN4003U LOVATO Return switch with "0-1" GN03 3-pole 40A Model U 65x65 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7GN4003U GN4003U LOVATO Return switch with "0-1" GN03 3-pole 40A Model U 65x65

7GN4003U

GN4003U

LOVATO ELECTRIC

1 Pcs.

Return switch with "0-1" GN03 3-pole 40A Model U 65x65 Int.with return III GN03 40A Mod. U 65x65 Rotary cam switch 7GN series, ON-OFF spring return switch 3 poles 40A, for front mounting with black handle, front plate 65X65mm

Automation > Selector switch, complete
Rotary cam switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A 7GN4003U Lovato return switch provides momentary or spring-return control functionality, enabling operators to send temporary control signals within automated production lines. These spring-return switches are widely applied in control panels where automatic reset is required after manual actuation.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Type of control element (EF006976): Short thumb-grip
  • Material front ring (EF005972): Plastic
  • Degree of protection (IP) (EF005474): IP40
  • Type of electric connection (EF003961): Screw connection
  • With front ring (EF006014): No
  • With light source (EF005905): No
  • Spring-return (EF001407): Yes
  • Suitable for lighting (EF001142): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 2
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of switch positions (EF000231): 2

More info

▲

7GN4003U

Rotary cam switch 7GN series, ON-OFF spring return switch 3 poles 40A, for front mounting with black handle, front plate 65X65mm

Technical specifications

Type of product:
ON/OFF switches
Switching diagram:
03 - ON/OFF spring return switch 3 poles
IEC Conventional free air thermal current Ith [A]:
40
Mounting form:
U - Front mounting with black handle
Series:
7GN - round-shaped contact block
Order code7GN4003U
Weight [g]236
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]068X068X105
Volume [cm³]485.52
Bar code [EAN13]3850144040847
HS Code85365080
