View larger
Images are for illustrative purposes only. Please refer to data sheet for details

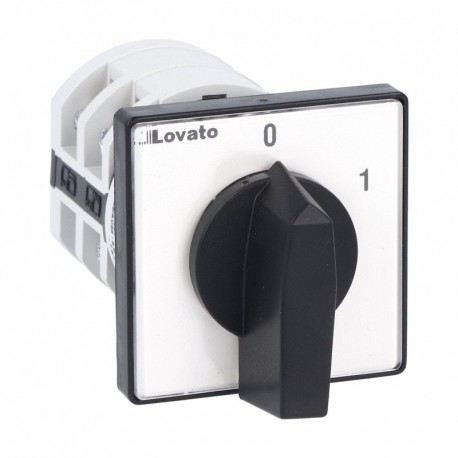

7GN2503U GN2503U LOVATO Return switch with "0-1" GN03 3-pole 25A Model U 48x48
7GN2503U
GN2503U
LOVATO ELECTRIC
1 Pcs.
Return switch with "0-1" GN03 3-pole 25A Model U 48x48
Int. with 3-pole return GN03 25 A Mod. U 48x48
Rotary cam switch 7GN series, ON-OFF spring return switch 3 poles 25A, for front mounting with black handle, front plate 48X48mm
Automation > Selector switch, complete
Rotary cam switches - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲7GN2503U
Rotary cam switch 7GN series, ON-OFF spring return switch 3 poles 25A, for front mounting with black handle, front plate 48X48mm
Technical specifications
- Type of product:
- ON/OFF switches
- Switching diagram:
- 03 - ON/OFF spring return switch 3 poles
- IEC Conventional free air thermal current Ith [A]:
- 25
- Mounting form:
- U - Front mounting with black handle
- Series:
- 7GN - round-shaped contact block
| Order code | 7GN2503U |
|---|---|
| Weight [g] | 113 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 050X050X082 |
| Volume [cm³] | 205 |
| Bar code [EAN13] | 3850144033580 |
| HS Code | 85365080 |
| Feature Name | Feature Value |
|---|---|
| Type of control element (EF006976) | Short thumb-grip |
| Material front ring (EF005972) | Plastic |
| Degree of protection (IP) (EF005474) | IP40 |
| Type of electric connection (EF003961) | Screw connection |
| With front ring (EF006014) | No |
| With light source (EF005905) | No |
| Spring-return (EF001407) | Yes |
| Suitable for lighting (EF001142) | No |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 2 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of switch positions (EF000231) | 2 |
