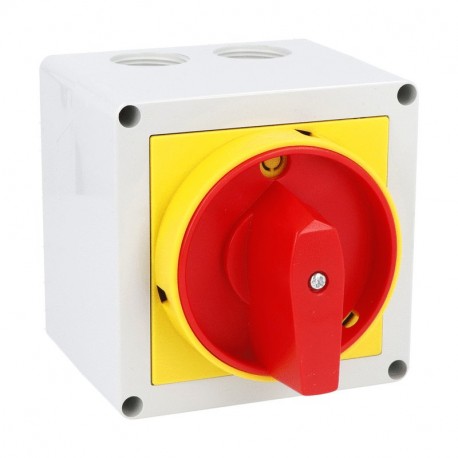

LOVATO ELECTRIC 7GN3210P25 7GN3210P25 GN3210P25 LOVATO ROTARY CAM SWITCHE, GN SERIES, P25 VERSION IN ENCLOSURE WITH PADLOCKABLE ROTATIN.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7GN3210P25 GN3210P25 LOVATO ROTARY CAM SWITCHE, GN SERIES, P25 VERSION IN ENCLOSURE WITH PADLOCKABLE ROTATIN..

7GN3210P25

GN3210P25

LOVATO ELECTRIC

1 Pcs.

ROTARY CAM SWITCHE, GN SERIES, P25 VERSION IN ENCLOSURE WITH PADLOCKABLE ROTATING HANDLE. ON/OFF SWITCH, THREE POLES - SCHEME 10, 32A III GN10 32A Switch Mod. P25 90x90 Enclosed rotary cam switch 7GN series, ON-OFF switch 3 pole 32A in plastic enclosure 90X90mm with red/yellow handle

Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric rotary cam switch, part number 7GN3210P25, is built to provide dependable manual on/off control within enclosed industrial electrical distribution layouts. Operators utilize these components to safely break or establish power circuits across a wide array of automated applications.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of control element (EF006976): Short thumb-grip
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Degree of protection (IP), front side (EF003118): IP40
  • Housing material (EF001596): Plastic
  • Model (EF000010): On/Off switch
  • Complete device in housing (EF007317): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for front mounting (EF007246): No
  • Suitable for floor mounting (EF007243): No
  • With retraction in 0-position (EF002428): No
  • With zero (off) position (EF001416): Yes
  • Number of poles (EF001391): 4
  • Rated permanent current Iu (EF001389): 32 A
  • Rated operation power at AC-3, 400 V (EF001364): 11 kW

More info

▲

7GN3210P25

Enclosed rotary cam switch 7GN series, ON-OFF switch 3 pole 32A in plastic enclosure 90X90mm with red/yellow handle

Technical specifications

Type of product:
ON/OFF switches
Switching diagram:
10 - ON/OFF switch 3 poles
IEC Conventional free air thermal current Ith [A]:
32
Mounting form:
P25 - Plastic enclosure with red/yellow handle
Series:
7GN - round-shaped contact block
Order code7GN3210P25
Weight [g]400
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]097X097X143
Volume [cm³]1345.487
Bar code [EAN13]3850144005266
HS Code85365080

72.58 £
