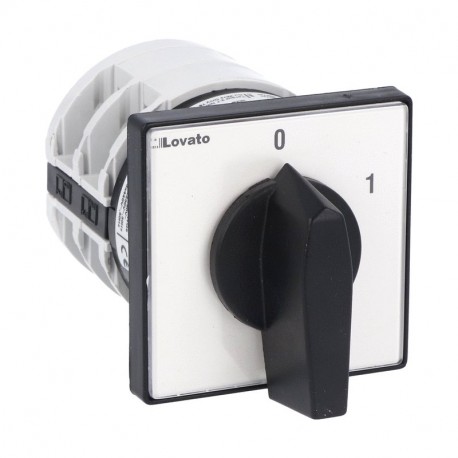

7GN6303U GN6303U LOVATO Return switch with "0-1" GN03 3-pole 63A Model U 65x65
7GN6303U
GN6303U
LOVATO ELECTRIC
1 Pcs.
Return switch with "0-1" GN03 3-pole 63A Model U 65x65
Int.with return III GN03 63A Mod. U 65x65
Rotary cam switch 7GN series, ON-OFF spring return switch 3 poles 63A, for front mounting with black handle, front plate 65X65mm
ROTARY CAM SWITCH 7GN SERIES, ON-OFF SPRING RETURN SWITCH 3 POLES 63A, FOR FRONT MOUNTING WITH BLACK HANDLE, FRONT PLATE 65X65MM
Automation > Selector switch, complete
Rotary cam switches - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲7GN6303U
Rotary cam switch 7GN series, ON-OFF spring return switch 3 poles 63A, for front mounting with black handle, front plate 65X65mm
Technical specifications
- Type of product:
- ON/OFF switches
- Switching diagram:
- 03 - ON/OFF spring return switch 3 poles
- IEC Conventional free air thermal current Ith [A]:
- 63
- Mounting form:
- U - Front mounting with black handle
- Series:
- 7GN - round-shaped contact block
| Order code | 7GN6303U |
|---|---|
| Weight [g] | 278 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 068X068X132 |
| Volume [cm³] | 610.368 |
| Bar code [EAN13] | 3850144041257 |
| HS Code | 85365080 |
| Feature Name | Feature Value |
|---|---|
| Type of control element (EF006976) | Short thumb-grip |
| Material front ring (EF005972) | Plastic |
| Degree of protection (IP) (EF005474) | IP40 |
| Type of electric connection (EF003961) | Screw connection |
| With front ring (EF006014) | No |
| With light source (EF005905) | No |
| Spring-return (EF001407) | Yes |
| Suitable for lighting (EF001142) | No |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 2 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of switch positions (EF000231) | 2 |
