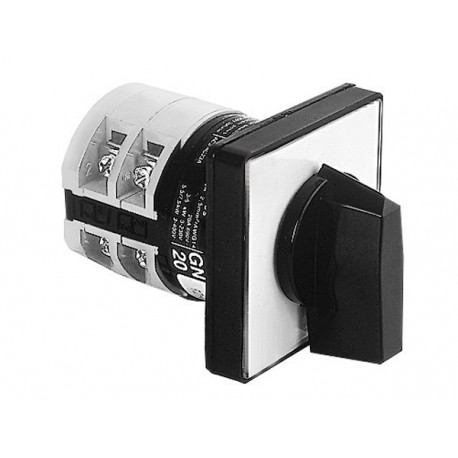

LOVATO ELECTRIC 7GN12552U 7GN12552U GN12552U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION, FRONT MOUNT. CHANGEOVER SWITCH WITH 0 (O.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7GN12552U GN12552U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION, FRONT MOUNT. CHANGEOVER SWITCH WITH 0 (O..

7GN12552U

GN12552U

LOVATO ELECTRIC

1 Pcs.

ROTARY CAM SWITCHE, GN SERIES, U VERSION, FRONT MOUNT. CHANGEOVER SWITCH WITH 0 (OFF), TWO-POLE - 2 WAFERS - SCHEME 52, 125A Switch II "1-0-2" GN52 125A Mod. U 90x90 Rotary cam switch 7GN series, changeover switch 2 poles 125A, for front mounting with black handle, front plate 90X90mm ROTARY CAM SWITCH 7GN SERIES, CHANGEOVER SWITCH 2 POLES 125A, FOR FRONT MOUNTING WITH BLACK HANDLE, FRONT PLATE 90X90MM

Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Front-mounted changeover switches like the Lovato Electric 7GN12552U direct electrical currents between different pathways within heavy electrical networks. These units provide reliable manual selection for high-current applications in industrial setups.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of control element (EF006976): Short thumb-grip
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Degree of protection (IP), front side (EF003118): IP40
  • Housing material (EF001596): Plastic
  • Model (EF000010): On/Off switch
  • Complete device in housing (EF007317): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for front mounting (EF007246): Yes
  • Suitable for floor mounting (EF007243): No
  • With retraction in 0-position (EF002428): No
  • With zero (off) position (EF001416): Yes
  • Number of poles (EF001391): 4
  • Rated permanent current Iu (EF001389): 125 A
  • Rated operation power at AC-3, 400 V (EF001364): 4 kW

More info

▲

7GN12552U

Rotary cam switch 7GN series, changeover switch 2 poles 125A, for front mounting with black handle, front plate 90X90mm

Technical specifications

Type of product:
Changeover switches
Switching diagram:
52 - Changeover switch 2 poles
IEC Conventional free air thermal current Ith [A]:
125
Mounting form:
U - Front mounting with black handle
Series:
7GN - round-shaped contact block
Order code7GN12552U
Weight [g]798
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]097X097X179
Volume [cm³]1684.211
Bar code [EAN13]3850144003620
HS Code85365080

305.73 £
