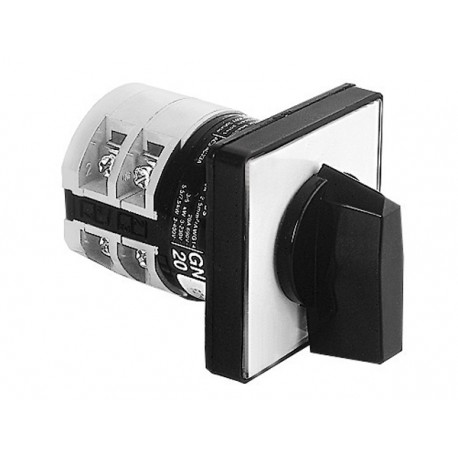

7GN6352U GN6352U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION, FRONT MOUNT. CHANGEOVER SWITCH WITH 0 (OFF..
7GN6352U
GN6352U
LOVATO ELECTRIC
1 Pcs.
Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A Lovato Electric changeover switch facilitates manual routing of higher-capacity electrical circuits, allowing operators to safely shift loads between different supply lines.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of control element (EF006976): Short thumb-grip
- Type of electrical connection of main circuit (EF006819): Screw connection
- Degree of protection (IP), front side (EF003118): IP40
- Housing material (EF001596): Plastic
- Model (EF000010): On/Off switch
- Complete device in housing (EF007317): Yes
- Suitable for intermediate mounting (EF007264): No
- Suitable for distribution board installation (EF007262): Yes
- Suitable for front mounting (EF007246): Yes
- Suitable for floor mounting (EF007243): No
- With retraction in 0-position (EF002428): No
- With zero (off) position (EF001416): Yes
- Number of poles (EF001391): 4
- Rated permanent current Iu (EF001389): 63 A
- Rated operation power at AC-3, 400 V (EF001364): 18.5 kW
More info
▲7GN6352U
Rotary cam switch 7GN series, changeover switch 2 poles 63A, for front mounting with black handle, front plate 65X65mm
Technical specifications
- Type of product:
- Changeover switches
- Switching diagram:
- 52 - Changeover switch 2 poles
- IEC Conventional free air thermal current Ith [A]:
- 63
- Mounting form:
- U - Front mounting with black handle
- Series:
- 7GN - round-shaped contact block
| Order code | 7GN6352U |
|---|---|
| Weight [g] | 302 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 068X068X132 |
| Volume [cm³] | 610.368 |
| Bar code [EAN13] | 3850144005648 |
| HS Code | 85365080 |
