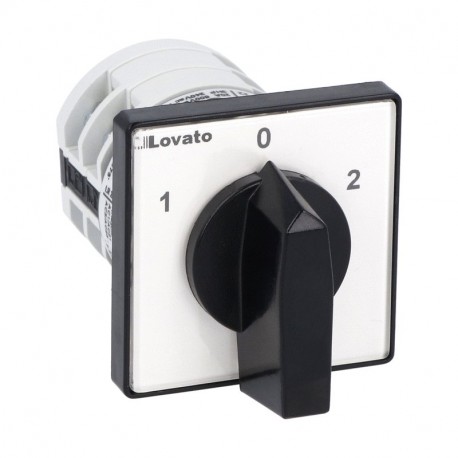

LOVATO ELECTRIC 7GN2052U 7GN2052U GN2052U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION, FRONT MOUNT. CHANGEOVER SWITCH WITH 0 (OFF.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7GN2052U GN2052U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION, FRONT MOUNT. CHANGEOVER SWITCH WITH 0 (OFF..

7GN2052U

GN2052U

LOVATO ELECTRIC

1 Pcs.

ROTARY CAM SWITCHE, GN SERIES, U VERSION, FRONT MOUNT. CHANGEOVER SWITCH WITH 0 (OFF), TWO-POLE - 2 WAFERS - SCHEME 52, 20A Switch II "1-0-2" GN52 20A Mod. U 48x48 Rotary cam switch 7GN series, changeover switch 2 poles 20A, for front mounting with black handle, front plate 48X48mm

Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric rotary cam switch, part number 7GN2052U, provides reliable manual circuit management for demanding electrical distribution panels. These mechanical switching devices are routinely utilized to route signals, disconnect loads, or alter operational pathways in automated machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of control element (EF006976): Short thumb-grip
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Degree of protection (IP), front side (EF003118): IP40
  • Housing material (EF001596): Plastic
  • Model (EF000010): On/Off switch
  • Complete device in housing (EF007317): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for front mounting (EF007246): Yes
  • Suitable for floor mounting (EF007243): No
  • With retraction in 0-position (EF002428): No
  • With zero (off) position (EF001416): Yes
  • Number of poles (EF001391): 4
  • Rated permanent current Iu (EF001389): 20 A
  • Rated operation power at AC-3, 400 V (EF001364): 5.5 kW

More info

▲

7GN2052U

Rotary cam switch 7GN series, changeover switch 2 poles 20A, for front mounting with black handle, front plate 48X48mm

Technical specifications

Type of product:
Changeover switches
Switching diagram:
52 - Changeover switch 2 poles
IEC Conventional free air thermal current Ith [A]:
20
Mounting form:
U - Front mounting with black handle
Series:
7GN - round-shaped contact block
Order code7GN2052U
Weight [g]98
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]050X050X082
Volume [cm³]205
Bar code [EAN13]3850144003309
HS Code85365080

33.2 £
