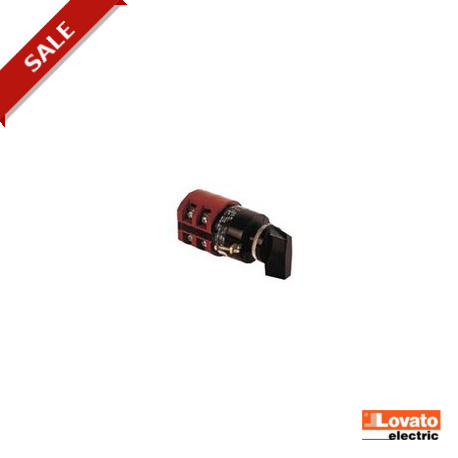

LOVATO ELECTRIC 7GN1252U11 7GN1252U11 GN1252U11 LOVATO Switch "1-0-2" Model 2-pole 12A GN52 U11 Ø 22mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7GN1252U11 GN1252U11 LOVATO Switch "1-0-2" Model 2-pole 12A GN52 U11 Ø 22mm

7GN1252U11

GN1252U11

LOVATO ELECTRIC

1 Pcs.

Switch "1-0-2" Model 2-pole 12A GN52 U11 Ø 22mm "1-0-2" 2-pole switch GN52 16 A Mod. U11 Ø 22mm Rotary cam switch 7GN series, changeover switch 2 poles 16A, for front mounting with black handle without front plate for hole Ø22mm fixing ROTARY CAM SWITCH 7GN SERIES, CHANGEOVER SWITCH 2 POLES 16A, FOR FRONT MOUNTING WITH BLACK HANDLE WITHOUT FRONT PLATE FOR HOLE DIAM. 22MM FIXING

Automation > Selector switch, complete
Rotary cam switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric 7GN1252U11 switch provides three-position selection capabilities for machinery and control panels requiring mode management or source switching. These rotary components allow manual toggling between operational states. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of control element (EF006976): Short thumb-grip
  • Material front ring (EF005972): Plastic
  • Degree of protection (IP) (EF005474): IP40
  • Type of electric connection (EF003961): Screw connection
  • With front ring (EF006014): No
  • With light source (EF005905): No
  • Spring-return (EF001407): No
  • Suitable for lighting (EF001142): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 2
  • Number of contacts as normally closed contact (EF008255): 0
  • Height opening (EF004778): 22 mm
  • Width opening (EF004565): 22 mm
  • Number of switch positions (EF000231): 3
  • Hole diameter (EF000079): 22 mm

More info

▲

7GN1252U11

Rotary cam switch 7GN series, changeover switch 2 poles 16A, for front mounting with black handle without front plate for hole Ø22mm fixing

Technical specifications

Type of product:
Changeover switches
Switching diagram:
52 - Changeover switch 2 poles
IEC Conventional free air thermal current Ith [A]:
16
Mounting form:
U11 - Front mounting with black handle without front plate for hole diam. 22mm fixing
Series:
7GN - round-shaped contact block
Order code7GN1252U11
Weight [g]100
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]050X050X082
Volume [cm³]205
Bar code [EAN13]3850144035355
HS Code85365080
