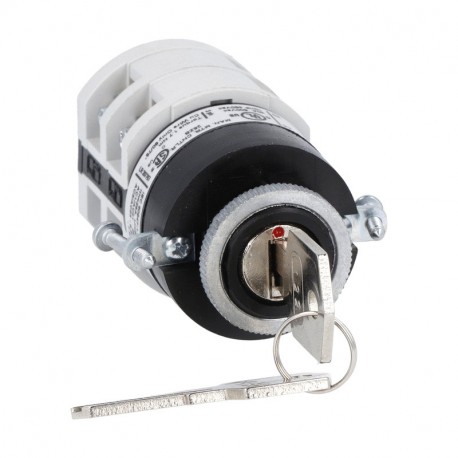

LOVATO ELECTRIC 7GN2591U12 7GN2591U12 GN2591U12 LOVATO 2-pole switch 25A Model GN91 U12 Ø 22mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7GN2591U12 GN2591U12 LOVATO 2-pole switch 25A Model GN91 U12 Ø 22mm

7GN2591U12

GN2591U12

LOVATO ELECTRIC

1 Pcs.

2-pole switch 25A Model GN91 U12 Ø 22mm 2-pole switch GN91 25 A Mod. U12 Ø 22mm with Key Rotary cam switch 7GN series, ON-OFF switch 2 poles 25A, for front mounting without front plate with key operation for hole Ø22mm fixing

Automation > Selector switch, complete
Rotary cam switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric 7GN2591U12 key-operated 2-pole switch provides secure access control and electrical isolation within standard control cutouts. Maintenance technicians rely on key-interlocked switches to prevent unauthorized power restoration during servicing. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of control element (EF006976): Key
  • Material front ring (EF005972): Plastic
  • Degree of protection (IP) (EF005474): IP40
  • Type of electric connection (EF003961): Screw connection
  • With front ring (EF006014): No
  • With light source (EF005905): No
  • Spring-return (EF001407): No
  • Suitable for lighting (EF001142): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Number of contacts as normally closed contact (EF008255): 0
  • Height opening (EF004778): 22 mm
  • Width opening (EF004565): 22 mm
  • Number of switch positions (EF000231): 2
  • Hole diameter (EF000079): 22 mm

More info

▲

7GN2591U12

Rotary cam switch 7GN series, ON-OFF switch 2 poles 25A, for front mounting without front plate with key operation for hole Ø22mm fixing

Technical specifications

Type of product:
ON/OFF switches
Switching diagram:
91 - ON/OFF switch 2 poles
IEC Conventional free air thermal current Ith [A]:
25
Mounting form:
U12 - Front mounting without front plate with key operation for hole diam. 22mm fixing
Series:
7GN - round-shaped contact block
Order code7GN2591U12
Weight [g]100
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]050X050X082
Volume [cm³]205
Bar code [EAN13]3850144039919
HS Code85365080
