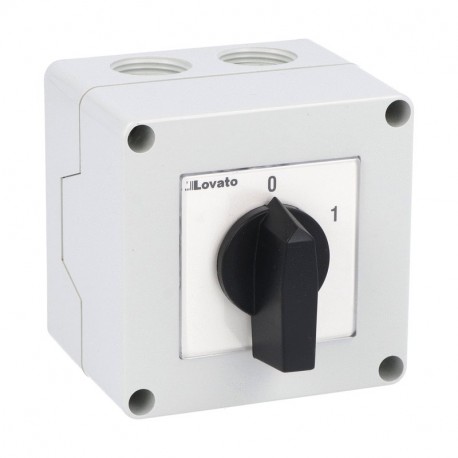

LOVATO ELECTRIC 7GN1291P 7GN1291P GN1291P LOVATO Box 2-pole switch 12A Model P 75x75 GN91 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7GN1291P GN1291P LOVATO Box 2-pole switch 12A Model P 75x75 GN91

7GN1291P

GN1291P

LOVATO ELECTRIC

1 Pcs.

Box 2-pole switch 12A Model P 75x75 GN91 Interruptor II GN91 16A Mod. P 75x75 Enclosed rotary cam switch 7GN series, ON-OFF switch 2 poles 16A in plastic enclosure 75X75mm with black handle ENCLOSED ROTARY CAM SWITCH 7GN SERIES, ON-OFF SWITCH 2 POLES 16A IN PLASTIC ENCLOSURE 75X75MM WITH BLACK HANDLE

Automation > Selector switch, complete
Rotary cam switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric 7GN1291P Box 2-pole switch 12A Model P 75x75 GN91 is a manual control device used to interrupt, route, or establish electrical connections within industrial panels and machinery. These components provide reliable circuit management and operator interface control across various manufacturing and distribution systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of control element (EF006976): Short thumb-grip
  • Material front ring (EF005972): Plastic
  • Degree of protection (IP) (EF005474): IP65
  • Type of electric connection (EF003961): Screw connection
  • With front ring (EF006014): No
  • With light source (EF005905): No
  • Spring-return (EF001407): No
  • Suitable for lighting (EF001142): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of switch positions (EF000231): 2

More info

▲

7GN1291P

Enclosed rotary cam switch 7GN series, ON-OFF switch 2 poles 16A in plastic enclosure 75X75mm with black handle

Technical specifications

Type of product:
ON/OFF switches
Switching diagram:
91 - ON/OFF switch 2 poles
IEC Conventional free air thermal current Ith [A]:
16
Mounting form:
P - Plastic enclosure with black handle
Series:
7GN - round-shaped contact block
Order code7GN1291P
Weight [g]195
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]086X086X105
Volume [cm³]776.58
Bar code [EAN13]3850144009783
HS Code85365080
