View larger
Images are for illustrative purposes only. Please refer to data sheet for details

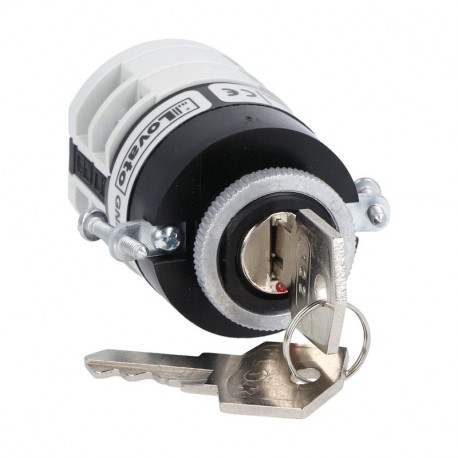

7GN2091U12 GN2091U12 LOVATO ROTARY CAM SWITCHE, GN SERIES, U12 VERSION FRONT MOUNT WITH KEY OPERATION FOR 22..
7GN2091U12
GN2091U12
LOVATO ELECTRIC
1 Pcs.
ROTARY CAM SWITCHE, GN SERIES, U12 VERSION FRONT MOUNT WITH KEY OPERATION FOR 22MM CENTRAL FIXING. ON/OFF SWITCH, TWO-POLE – 1 WAFER – SCHEME 91, 20A
II GN91 20A Switch Mod. U12 Key Ø22
Rotary cam switch 7GN series, ON-OFF switch 2 poles 20A, for front mounting without front plate with key operation for hole Ø22mm fixing
Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲7GN2091U12
Rotary cam switch 7GN series, ON-OFF switch 2 poles 20A, for front mounting without front plate with key operation for hole Ø22mm fixing
Technical specifications
- Type of product:
- ON/OFF switches
- Switching diagram:
- 91 - ON/OFF switch 2 poles
- IEC Conventional free air thermal current Ith [A]:
- 20
- Mounting form:
- U12 - Front mounting without front plate with key operation for hole diam. 22mm fixing
- Series:
- 7GN - round-shaped contact block
| Order code | 7GN2091U12 |
|---|---|
| Weight [g] | 100 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 050X050X082 |
| Volume [cm³] | 205 |
| Bar code [EAN13] | 3850144004382 |
| HS Code | 85365080 |
44.75 £
| Feature Name | Feature Value |
|---|---|
| Type of control element (EF006976) | Key |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Degree of protection (IP), front side (EF003118) | IP40 |
| Housing material (EF001596) | Plastic |
| Model (EF000010) | On/Off switch |
| Complete device in housing (EF007317) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for front mounting (EF007246) | Yes |
| Suitable for floor mounting (EF007243) | No |
| With retraction in 0-position (EF002428) | No |
| With zero (off) position (EF001416) | Yes |
| Number of poles (EF001391) | 2 |
| Rated permanent current Iu (EF001389) | 20 A |
| Rated operation power at AC-3, 400 V (EF001364) | 5.5 kW |
