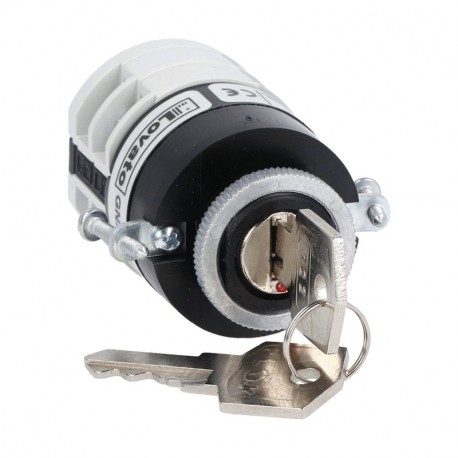

LOVATO ELECTRIC 7GN1291U12 7GN1291U12 GN1291U12 LOVATO ROTARY CAM SWITCHE, GN SERIES, U12 VERSION FRONT MOUNT WITH KEY OPERATION FOR 22.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7GN1291U12 GN1291U12 LOVATO ROTARY CAM SWITCHE, GN SERIES, U12 VERSION FRONT MOUNT WITH KEY OPERATION FOR 22..

7GN1291U12

GN1291U12

LOVATO ELECTRIC

1 Pcs.

ROTARY CAM SWITCHE, GN SERIES, U12 VERSION FRONT MOUNT WITH KEY OPERATION FOR 22MM CENTRAL FIXING. ON/OFF SWITCH, TWO-POLE – 1 WAFER – SCHEME 91, 16A Interruptor II GN91 16A Mod. U12 Key Ø22 Rotary cam switch 7GN series, ON-OFF switch 2 poles 16A, for front mounting without front plate with key operation for hole Ø22mm fixing

Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric key-operated on/off switch provides secure circuit isolation and restricted access control, ensuring that only authorized personnel can energize or shut down sensitive industrial equipment. These secure rotary switches integrate smoothly into standard control panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of control element (EF006976): Key
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Degree of protection (IP), front side (EF003118): IP40
  • Housing material (EF001596): Plastic
  • Model (EF000010): On/Off switch
  • Complete device in housing (EF007317): Yes
  • Suitable for intermediate mounting (EF007264): No
  • Suitable for distribution board installation (EF007262): Yes
  • Suitable for front mounting (EF007246): Yes
  • Suitable for floor mounting (EF007243): No
  • With retraction in 0-position (EF002428): No
  • With zero (off) position (EF001416): Yes
  • Number of poles (EF001391): 2
  • Rated permanent current Iu (EF001389): 16 A
  • Rated operation power at AC-3, 400 V (EF001364): 4 kW

More info

▲

7GN1291U12

Rotary cam switch 7GN series, ON-OFF switch 2 poles 16A, for front mounting without front plate with key operation for hole Ø22mm fixing

Technical specifications

Type of product:
ON/OFF switches
Switching diagram:
91 - ON/OFF switch 2 poles
IEC Conventional free air thermal current Ith [A]:
16
Mounting form:
U12 - Front mounting without front plate with key operation for hole diam. 22mm fixing
Series:
7GN - round-shaped contact block
Order code7GN1291U12
Weight [g]100
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]050X085X050
Volume [cm³]212.5
Bar code [EAN13]3850144003958
HS Code85365080

40.6 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
