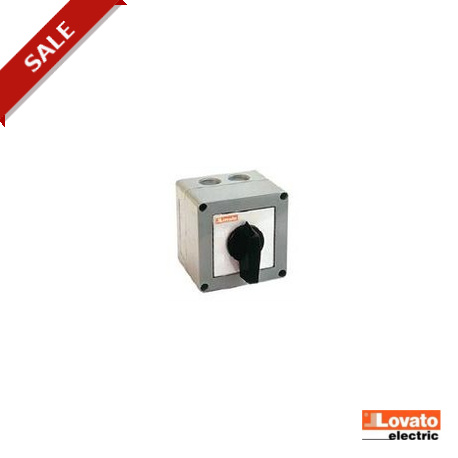

LOVATO ELECTRIC 7GN12109P 7GN12109P GN12109P LOVATO Unipolar switch with "0" 4 Positions GN109 12A Model P 75x75 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7GN12109P GN12109P LOVATO Unipolar switch with "0" 4 Positions GN109 12A Model P 75x75

7GN12109P

GN12109P

LOVATO ELECTRIC

1 Pcs.

Unipolar switch with "0" 4 Positions GN109 12A Model P 75x75 Switch I "0-4" GN109 16 A Mod. P 75x75 Enclosed rotary cam switch 7GN series, multi-step 0-1-2-3-4, 1 pole 16A in plastic enclosure 75X75mm with black handle ENCLOSED ROTARY CAM SWITCH 7GN SERIES, MULTI-STEP 0-1-2-3-4 1 POLE 16A IN PLASTIC ENCLOSURE 75X75MM WITH BLACK HANDLE

Automation > Selector switch, complete
Rotary cam switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Lovato Electric 7GN12109P unipolar switch provides reliable manual selection across multiple distinct circuits in heavy-duty automation systems. Engineers frequently specify these rotary cam switches to direct control signals and manage auxiliary functions within electrical enclosures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of control element (EF006976): Short thumb-grip
  • Material front ring (EF005972): Plastic
  • Degree of protection (IP) (EF005474): IP65
  • Type of electric connection (EF003961): Screw connection
  • With front ring (EF006014): No
  • With light source (EF005905): No
  • Spring-return (EF001407): No
  • Suitable for lighting (EF001142): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 2
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of switch positions (EF000231): 5

More info

▲

7GN12109P

Enclosed rotary cam switch 7GN series, multi-step 0-1-2-3-4, 1 pole 16A in plastic enclosure 75X75mm with black handle

Technical specifications

Type of product:
Multi-step
Switching diagram:
109 - Multi-step 0-1-2-3-4 1 pole
IEC Conventional free air thermal current Ith [A]:
16
Mounting form:
P - Plastic enclosure with black handle
Series:
7GN - round-shaped contact block
Order code7GN12109P
Weight [g]214
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]086X086X105
Volume [cm³]776.58
Bar code [EAN13]3850144030251
HS Code85365080
