View larger
Images are for illustrative purposes only. Please refer to data sheet for details

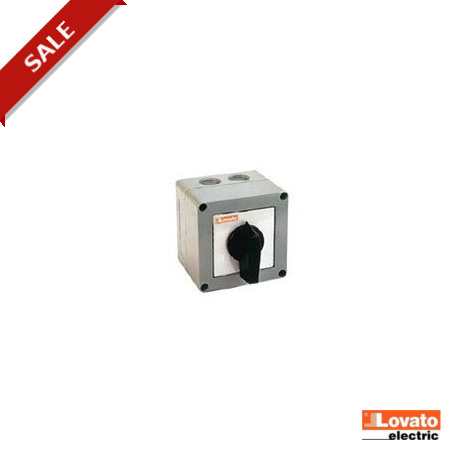

7GN20109P GN20109P LOVATO Unipolar switch with "0" position 4 Position GN109 20A Model P 75x75
7GN20109P
GN20109P
LOVATO ELECTRIC
1 Pcs.
Unipolar switch with "0" position 4 Position GN109 20A Model P 75x75
Switch I "0-4"GN109 20 A Mod. P 75x75
Enclosed rotary cam switch 7GN series, multi-step 0-1-2-3-4, 1 pole 20A in plastic enclosure 75X75mm with black handle
ENCLOSED ROTARY CAM SWITCH 7GN SERIES, MULTI-STEP 0-1-2-3-4 1 POLE 20A IN PLASTIC ENCLOSURE 75X75MM WITH BLACK HANDLE
Automation > Selector switch, complete
Rotary cam switches - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲7GN20109P
Enclosed rotary cam switch 7GN series, multi-step 0-1-2-3-4, 1 pole 20A in plastic enclosure 75X75mm with black handle
Technical specifications
- Type of product:
- Multi-step
- Switching diagram:
- 109 - Multi-step 0-1-2-3-4 1 pole
- IEC Conventional free air thermal current Ith [A]:
- 20
- Mounting form:
- P - Plastic enclosure with black handle
- Series:
- 7GN - round-shaped contact block
| Order code | 7GN20109P |
|---|---|
| Weight [g] | 214 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 086X086X105 |
| Volume [cm³] | 776.58 |
| Bar code [EAN13] | 3850144054585 |
| HS Code | 85365080 |
| Feature Name | Feature Value |
|---|---|
| Type of control element (EF006976) | Short thumb-grip |
| Material front ring (EF005972) | Plastic |
| Degree of protection (IP) (EF005474) | IP65 |
| Type of electric connection (EF003961) | Screw connection |
| With front ring (EF006014) | No |
| With light source (EF005905) | No |
| Spring-return (EF001407) | No |
| Suitable for lighting (EF001142) | No |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 2 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of switch positions (EF000231) | 5 |
