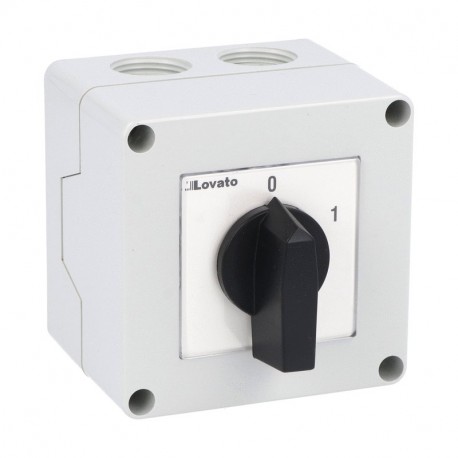

7GN2090P GN2090P LOVATO 1-pole switch box GN90 20A Model P 75x75
7GN2090P
GN2090P
LOVATO ELECTRIC
1 Pcs.
1-pole switch box GN90 20A Model P 75x75
I GN90 20A Switch Mod. P 75x75
Enclosed rotary cam switch 7GN series, ON-OFF switch 1 pole 20A in plastic enclosure 75X75mm with black handle
Automation > Selector switch, complete
Rotary cam switches - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲7GN2090P
Enclosed rotary cam switch 7GN series, ON-OFF switch 1 pole 20A in plastic enclosure 75X75mm with black handle
Technical specifications
- Type of product:
- ON/OFF switches
- Switching diagram:
- 90 - ON/OFF switch 1 pole
- IEC Conventional free air thermal current Ith [A]:
- 20
- Mounting form:
- P - Plastic enclosure with black handle
- Series:
- 7GN - round-shaped contact block
| Order code | 7GN2090P |
|---|---|
| Weight [g] | 196 |
| Qty. per package | 1 |
| Multiple qty. of packs per order | 1 |
| Package dimensions [mm] | 086X086X107 |
| Volume [cm³] | 791.372 |
| Bar code [EAN13] | 3850144008496 |
| HS Code | 85365080 |
| Feature Name | Feature Value |
|---|---|
| Type of control element (EF006976) | Short thumb-grip |
| Material front ring (EF005972) | Plastic |
| Degree of protection (IP) (EF005474) | IP40 |
| Type of electric connection (EF003961) | Screw connection |
| With front ring (EF006014) | No |
| With light source (EF005905) | No |
| Spring-return (EF001407) | No |
| Suitable for lighting (EF001142) | No |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 1 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of switch positions (EF000231) | 2 |
