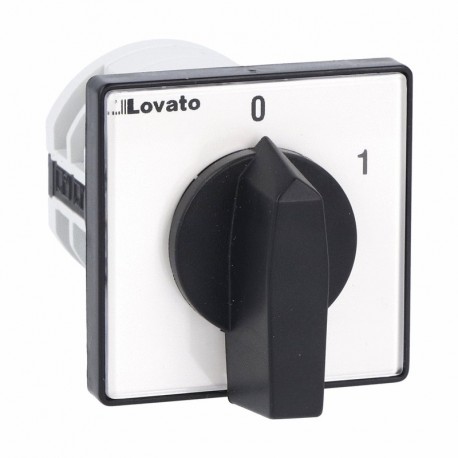

LOVATO ELECTRIC 7GN1290U 7GN1290U GN1290U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION FRONT MOUNT. ON/OFF SWITCH, ONE-POLE – 1 WA.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7GN1290U GN1290U LOVATO ROTARY CAM SWITCHE, GN SERIES, U VERSION FRONT MOUNT. ON/OFF SWITCH, ONE-POLE – 1 WA..

7GN1290U

GN1290U

LOVATO ELECTRIC

1 Pcs.

ROTARY CAM SWITCHE, GN SERIES, U VERSION FRONT MOUNT. ON/OFF SWITCH, ONE-POLE – 1 WAFER – SCHEME 90, 16A I GN90 16A Switch Mod. U 48x48 Rotary cam switch 7GN series, ON-OFF switch 1 pole 16A, for front mounting with black handle, front plate 48X48mm

Automation > Off-load switch
Rotary cam switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Lovato Electric rotary cam switch (7GN1290U) functions as a manual control device used to safely route electrical currents, interrupt power feeds, or direct signals across industrial machinery circuits. These robust switches provide reliable mechanical switching for operational panels and distribution setups requiring direct human intervention.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of control element: Short thumb-grip
  • Type of electrical connection of main circuit: Screw connection
  • Degree of protection (IP), front side: IP40
  • Housing material: Plastic
  • Model: On/Off switch
  • Complete device in housing: Yes
  • Suitable for intermediate mounting: No
  • Suitable for distribution board installation: Yes
  • Suitable for front mounting: Yes
  • Suitable for floor mounting: No
  • With retraction in 0-position: No
  • With zero (off) position: Yes
  • Number of poles: 2
  • Rated permanent current Iu: 16 A
  • Rated operation power at AC-3, 400 V: 4 kW

More info

▲

7GN1290U

Rotary cam switch 7GN series, ON-OFF switch 1 pole 16A, for front mounting with black handle, front plate 48X48mm

Technical specifications

Type of product:
ON/OFF switches
Switching diagram:
90 - ON/OFF switch 1 pole
IEC Conventional free air thermal current Ith [A]:
16
Mounting form:
U - Front mounting with black handle
Series:
7GN - round-shaped contact block
Order code7GN1290U
Weight [g]75.2
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]050X050X082
Volume [cm³]205
Bar code [EAN13]3850144002364
HS Code85365080

17.83 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
