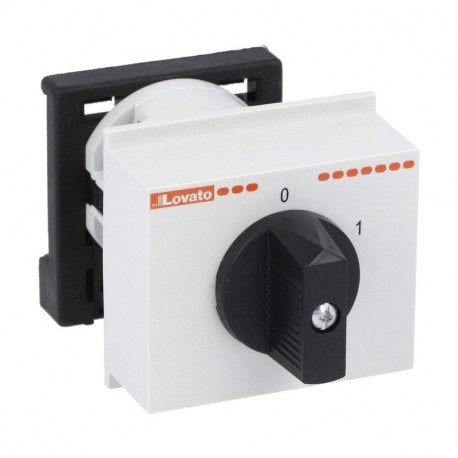

LOVATO ELECTRIC 7GN1290O48 7GN1290O48 GN1290O48 LOVATO 1-pole switch 12A Model O48 DIN GN90 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

7GN1290O48 GN1290O48 LOVATO 1-pole switch 12A Model O48 DIN GN90

7GN1290O48

GN1290O48

LOVATO ELECTRIC

1 Pcs.

1-pole switch 12A Model O48 DIN GN90 I GN90 16A Switch Mod. O48 DIN Rotary cam switch 7GN series, ON-OFF switch 1 pole 16A, modular service cover for 35mm DIN reail mounting with black handle, front plate 45X54mm

Automation > Selector switch, complete
Rotary cam switches - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Lovato Electric 7GN1290O48 single-pole switch is designed for precise manual control of individual low-voltage circuits in industrial automation setups. Panel builders incorporate these modular units into distribution boards for straightforward circuit activation and routing.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of control element (EF006976): Short thumb-grip
  • Material front ring (EF005972): Plastic
  • Degree of protection (IP) (EF005474): IP40
  • Type of electric connection (EF003961): Screw connection
  • With front ring (EF006014): No
  • With light source (EF005905): No
  • Spring-return (EF001407): No
  • Suitable for lighting (EF001142): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 1
  • Number of contacts as normally closed contact (EF008255): 0
  • Height opening (EF004778): 45 mm
  • Width opening (EF004565): 54 mm
  • Number of switch positions (EF000231): 2
  • Hole diameter (EF000079): 45 mm

More info

▲

7GN1290O48

Rotary cam switch 7GN series, ON-OFF switch 1 pole 16A, modular service cover for 35mm DIN reail mounting with black handle, front plate 45X54mm

Technical specifications

Type of product:
ON/OFF switches
Switching diagram:
90 - ON/OFF switch 1 pole
IEC Conventional free air thermal current Ith [A]:
16
Mounting form:
O48 - Modular service cover for 35mm din rail mounting with black handle
Series:
7GN - round-shaped contact block
Order code7GN1290O48
Weight [g]69
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]050X050X082
Volume [cm³]205
Bar code [EAN13]3850144010284
HS Code85365080
