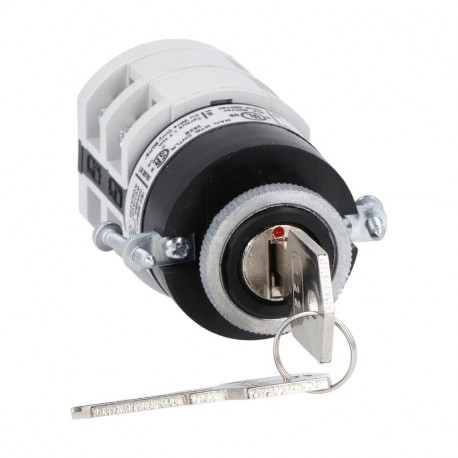

7GN2590U12 GN2590U12 LOVATO 1-pole switch 25A Model GN90 U12 Ø 22mm
7GN2590U12
GN2590U12
LOVATO ELECTRIC
1 Pcs.
1-pole switch 25A Model GN90 U12 Ø 22mm
1 pole switch GN90 25 A Mod. U12 Ø 22mm with Key
Rotary cam switch 7GN series, ON-OFF switch 1 pole 25A, for front mounting without front plate with key operation for hole Ø22mm fixing
Automation > Selector switch, complete
Rotary cam switches - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲7GN2590U12
Rotary cam switch 7GN series, ON-OFF switch 1 pole 25A, for front mounting without front plate with key operation for hole Ø22mm fixing
Technical specifications
- Type of product:
- ON/OFF switches
- Switching diagram:
- 90 - ON/OFF switch 1 pole
- IEC Conventional free air thermal current Ith [A]:
- 25
- Mounting form:
- U12 - Front mounting without front plate with key operation for hole diam. 22mm fixing
- Series:
- 7GN - round-shaped contact block
| Order code | 7GN2590U12 |
|---|---|
| Weight [g] | 0.01 |
| Qty. per package | 0 |
| Multiple qty. of packs per order | 0 |
| Package dimensions [mm] | |
| Volume [cm³] | 0 |
| Bar code [EAN13] | 3850144044371 |
| HS Code | 85365080 |
| Feature Name | Feature Value |
|---|---|
| Type of control element (EF006976) | Key |
| Material front ring (EF005972) | Plastic |
| Degree of protection (IP) (EF005474) | IP40 |
| Type of electric connection (EF003961) | Screw connection |
| With front ring (EF006014) | No |
| With light source (EF005905) | No |
| Spring-return (EF001407) | No |
| Suitable for lighting (EF001142) | No |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 1 |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Height opening (EF004778) | 22 mm |
| Width opening (EF004565) | 22 mm |
| Number of switch positions (EF000231) | 2 |
| Hole diameter (EF000079) | 22 mm |
