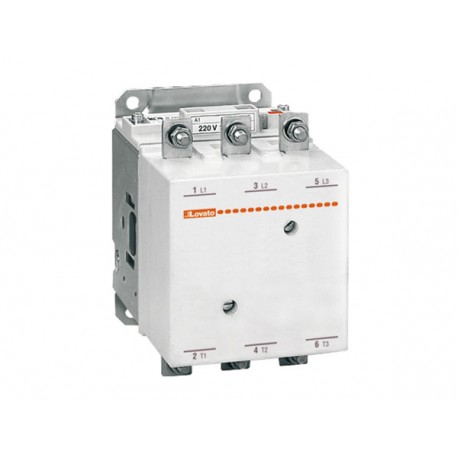

LOVATO ELECTRIC 11B630L00220110 11B630L00220110 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 630A, AC/DC COIL, ALREADY FITTED.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

11B630L00220110 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 630A, AC/DC COIL, ALREADY FITTED..

11B630L00220110

00220110

LOVATO ELECTRIC

1 Pcs.

THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) = 630A, AC/DC COIL, ALREADY FITTED WITH MECHANICAL LATCH (G495), 220…240VAC/DC, MECHANICAL LATCH 110…125VAC 3P CONTACTOR 220/240V C/W LATCH 110VAC Three-pole contactor, IEC operating current Ie (AC3) = 630A, AC/DC coil, already fitted with mechanical latch (G495), 220...240VAC/DC, mechanical latch 110...125VAC

Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

11B630L00220110

Three-pole contactor, IEC operating current Ie (AC3) = 630A, AC/DC coil, already fitted with mechanical latch (G495), 220...240VAC/DC, mechanical latch 110...125VAC

Technical specifications

Type of product:
Contactors
Number of poles:
3
Type of coil:
AC/DC coil
Rated coil voltage [V]:
220...240
IEC operating current Ith (AC1) [A]:
800
IEC operating current and power Ie (AC3) 400V [A/Kw]:
630A / 355Kw
Type of mounting:
Screw
Order code11B630L00220110
Weight [g]18820
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]310X203X276
Volume [cm³]17369
Bar code [EAN13]8013975045992
HS Code85365080

5717.11 £


ETIM for 11B630L00220110 Low-voltage industrial controls and switchgear (EC000066)
Feature Name Feature Value
Voltage type for actuating (EF008242) AC/DC
Type of electrical connection of main circuit (EF006819) Bolt connection
Rated control supply voltage DC (EF003980) 220 V
Rated control supply voltage AC 60 Hz (EF003979) 220 V
Rated control supply voltage AC 50 Hz (EF003978) 220 V
Modular version (EF001126) No
Rated operation current Ie at AC-4, 400 V (EF008495) 210 A
Rated operation current Ie at AC-1, 400 V (EF001393) 800 A
Rated operation current Ie at AC-3, 400 V (EF001392) 630 A
Number of auxiliary contacts as normally closed contact (EF001377) 0
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of normally closed contacts as main contact (EF001375) 0
Number of normally open contacts as main contact (EF001374) 3
Rated operation power at AC-3, 400 V (EF001364) 335 kW

Product Datasheet
