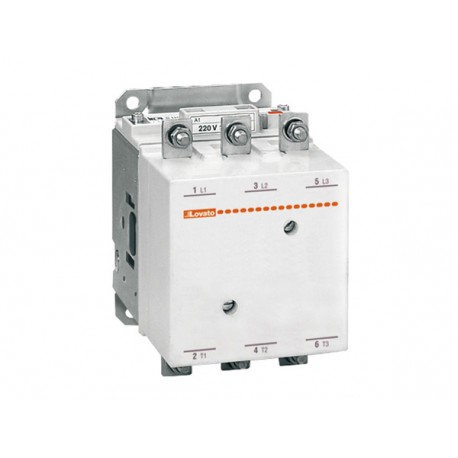

LOVATO ELECTRIC 11B500L00380380 11B500L00380380 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 520A, AC/DC COIL, ALREADY FITTED.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

11B500L00380380 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 520A, AC/DC COIL, ALREADY FITTED..

11B500L00380380

00380380

LOVATO ELECTRIC

1 Pcs.

THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) = 520A, AC/DC COIL, ALREADY FITTED WITH MECHANICAL LATCH (G495), 380…415VAC/DC, MECHANICAL LATCH 380…415VAC 3P CONTACTOR 380/415V C/W LATCH 380VAC Three-pole contactor, IEC operating current Ie (AC3) = 520A, AC/DC coil, already fitted with mechanical latch (G495), 380...415VAC/DC, mechanical latch 380...415VAC

Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Three-pole contactor 11B500L00380380 from Lovato Electric is a heavy-duty switching device built to manage high electrical currents in large industrial drives and power distribution networks. It provides dependable operation in rigorous facility environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type for actuating: AC/DC
  • Type of electrical connection of main circuit: Bolt connection
  • Rated control supply voltage DC: 380 V
  • Rated control supply voltage AC 60 Hz: 380 V
  • Rated control supply voltage AC 50 Hz: 380 V
  • Modular version: No
  • Rated operation current Ie at AC-4, 400 V: 175 A
  • Rated operation current Ie at AC-1, 400 V: 700 A
  • Rated operation current Ie at AC-3, 400 V: 520 A
  • Number of normally open contacts as main contact: 3
  • Rated operation power at AC-3, 400 V: 290 kW

More info

▲

11B500L00380380

Three-pole contactor, IEC operating current Ie (AC3) = 520A, AC/DC coil, already fitted with mechanical latch (G495), 380...415VAC/DC, mechanical latch 380...415VAC

Technical specifications

Type of product:
Contactors
Number of poles:
3
Type of coil:
AC/DC coil
Rated coil voltage [V]:
380...415
IEC operating current Ith (AC1) [A]:
700
IEC operating current and power Ie (AC3) 400V [A/Kw]:
520A / 290Kw
Type of mounting:
Screw
Order code11B500L00380380
Weight [g]18800
Qty. per package1
Multiple qty. of packs per order1
Package dimensions [mm]310X203X276
Volume [cm³]17369
Bar code [EAN13]8013975030875
HS Code85365080

3191.77 £


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
