View larger
Images are for illustrative purposes only. Please refer to data sheet for details

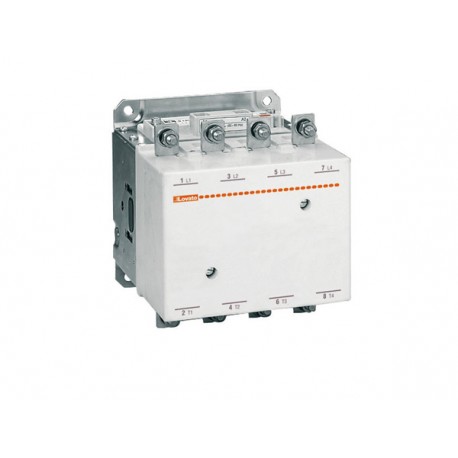

11B400SL00220 LOVATO THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) 420A, AC/DC COIL, PREDISPOSED FOR ..
11B400SL00220
00220
LOVATO ELECTRIC
1 Pcs.
THREE-POLE CONTACTOR, IEC OPERATING CURRENT IE (AC3) = 420A, AC/DC COIL, PREDISPOSED FOR MECHANICAL LATCH (G495), 220…240VAC/DC
3P CONTACTOR 220/240V W/O LATCH
Three-pole contactor, IEC operating current Ie (AC3) = 420A, AC/DC coil, predisposed for mechanical latch (G495), 220...240VAC/DC
Automation > Power contactor, AC switching
Industrial Contactors and Accessories - LOVATO ELECTRIC
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Order code | 11B400SL00220 |
| Weight [g] | 9520 |
| Package dimensions [mm] | 208X148X232 |
| Volume [cm³] | 7141.888 |
| Bar code [EAN13] | 8013975011836 |
| HS Code | 85365080 |
| Feature Name | Feature Value |
|---|---|
| Voltage type for actuating (EF008242) | AC/DC |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Rated control supply voltage DC (EF003980) | 220 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 220 V |
| Rated control supply voltage AC 50 Hz (EF003978) | 220 V |
| Modular version (EF001126) | No |
| Rated operation current Ie at AC-4, 400 V (EF008495) | 133 A |
| Rated operation current Ie at AC-1, 400 V (EF001393) | 550 A |
| Rated operation current Ie at AC-3, 400 V (EF001392) | 420 A |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of normally closed contacts as main contact (EF001375) | 0 |
| Number of normally open contacts as main contact (EF001374) | 3 |
| Rated operation power at AC-3, 400 V (EF001364) | 225 kW |
