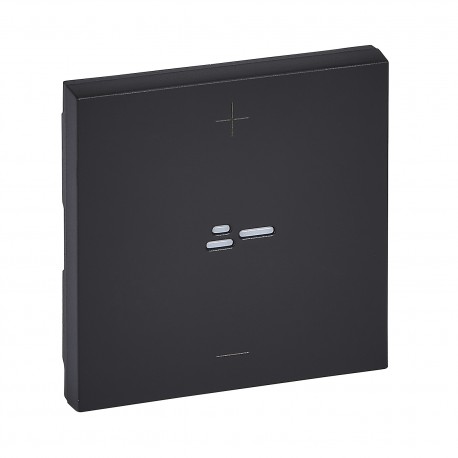

LEGRAND 864340A 864340A LEGRAND NS-KEYS REG PULS 3H NEG View larger
Images are for illustrative purposes only. Please refer to data sheet for details

864340A LEGRAND NS-KEYS REG PULS 3H NEG

864340A

864340A

LEGRAND

1 Pcs.

NS-KEYS REG PULS 3H NEG Niloé Step key- Lighting regulation - By press - Matte black Niloé Step Key - Push-button lighting regulation - Matte black

Automation > Control element/cover plate for domestic switching devices
NILOÉ MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A dimmer control rocker, Legrand part number 864340A, is designed to act as an ergonomic adjustment interface for rotary or push-button lighting dimmers. These faceplates attach to dimmer modules to allow precise user control over ambient light output levels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 50 mm
  • RAL-number (similar) (EF003882): 9017
  • Model (EF000010): One-part rocker
  • Material (EF002169): Plastic
  • Utilization (EF000133): Dimmer
  • Monitoring window/light outlet (EF003864): Yes
  • Surface finishing (EF006569): Matt
  • Type of fastening (EF002442): Engage (snap)
  • Suitable for degree of protection (IP) (EF006755): IP20
  • Material quality (EF001257): Thermoplastic
  • Halogen free (EF000025): Yes
  • With exchangeable lens/symbol (EF006039): No
  • With label area (EF005040): No
  • Scannable symbol/barrier free (EF012306): No
  • Anti-bacterial treatment (EF023790): No
  • Impact strength (EF004293): IK04

More info

▲

Overview

Niloé Step key- Lighting regulation - By press - Matte black

description
To be used in conjunction with the Niloé Step push-button dimmer mechanism.

specifications

ModelSingle Rocker
Printing/MarkingOther
Tangible/barrier-free symbolNo
UseAttenuator
Suitable for connection of bus system pushbuttonsNo
Attachment TypeLock in position
Light Output/Control WindowYes
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Surface treatmentVarnishing
Surface FinishMate
Antibacterial treatmentNo
ColourBlack
RAL number (similar)9017
With label areaNo
With interchangeable lens/symbolNo
Suitable for protection grade (IP)IP20
Impact resistanceIK04
Width50 mm
Height50 mm
Depth8.5 mm
Operating Temperature-5-40 °C
Storage temperature-10-70 °C
