LEGRAND 864240A 864240A LEGRAND NS-KEYS REG PULS 3H ALUM View larger
Images are for illustrative purposes only. Please refer to data sheet for details

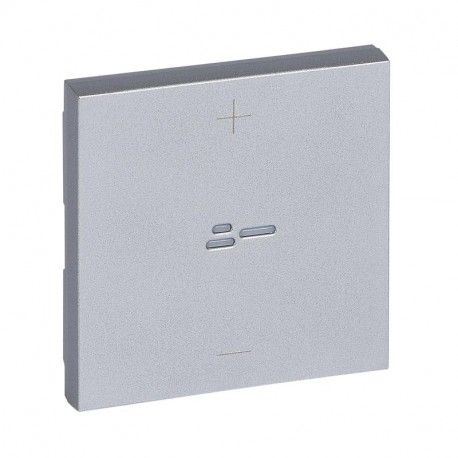

864240A LEGRAND NS-KEYS REG PULS 3H ALUM

864240A

864240A

LEGRAND

1 Pcs.

NS-KEYS REG PULS 3H ALUM Niloé Step key- Lighting regulation - By press - Aluminum Niloé Step Key - Lighting regulation by touch - Aluminum

Automation > Control element/cover plate for domestic switching devices
NILOÉ MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A one-part rocker actuator such as this Legrand 864240A unit is designed for integration with dimmer mechanisms and architectural control devices to regulate lighting levels. These faceplates snap onto modular control frames to give users direct manual adjustment over dimming circuits.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Height (EF000040): 50 mm
  • RAL-number (similar) (EF003882): 7040
  • Model (EF000010): One-part rocker
  • Material (EF002169): Plastic
  • Utilization (EF000133): Dimmer
  • Monitoring window/light outlet (EF003864): Yes
  • Surface finishing (EF006569): Matt
  • Type of fastening (EF002442): Engage (snap)
  • Suitable for degree of protection (IP) (EF006755): IP20
  • Material quality (EF001257): Thermoplastic
  • Halogen free (EF000025): Yes
  • With exchangeable lens/symbol (EF006039): No
  • With label area (EF005040): No
  • Scannable symbol/barrier free (EF012306): No
  • Anti-bacterial treatment (EF023790): No
  • Impact strength (EF004293): IK04

More info

▲

Overview

Niloé Step key- Lighting regulation - By press - Aluminum

description
To be used in conjunction with the Niloé Step push-button dimmer mechanism.

specifications

ModelSingle Rocker
Printing/MarkingOther
Tangible/barrier-free symbolNo
UseAttenuator
Suitable for connection of bus system pushbuttonsNo
Attachment TypeLock in position
Light Output/Control WindowYes
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Surface treatmentVarnishing
Surface FinishMate
Antibacterial treatmentNo
Colouraluminium
RAL number (similar)7040
With label areaNo
With interchangeable lens/symbolNo
Suitable for protection grade (IP)IP20
Impact resistanceIK04
Width50 mm
Height50 mm
Depth8.5 mm
Operating Temperature-5-40 °C
Storage temperature-10-70 °C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
