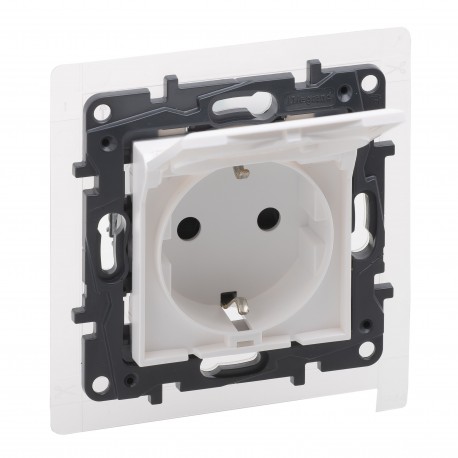

LEGRAND 864139 864139 LEGRAND NS-BASE 2P+T 16A IP44 BLAN View larger
Images are for illustrative purposes only. Please refer to data sheet for details

864139 LEGRAND NS-BASE 2P+T 16A IP44 BLAN

864139

864139

LEGRAND

10 Pcs.

NS-BASE 2P+T 16A IP44 BLAN Power base 2P+T Niloé Step - IP 44 - 250 V~ - Matte white Niloé Step- 2P+T- IP44- auto terminal- 16A- 250V~- Matte white power base.

Automation > Socket outlet
NILOÉ MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand 864139 NS-BASE 2P+T 16A IP44 BLAN flush mounted socket outlet features an IP44 protection rating to resist moisture and dust ingress in demanding room environments. Weather-resistant electrical receptacles maintain safe power delivery where exposure is a concern.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Over voltage protection (EF001332): No
  • Nominal current (EF000001): 16 A
  • Rotated central insert (EF001331): No
  • Material quality (EF001257): Thermoplastic
  • Mounting method (EF000003): Flush mounted
  • Special power supply (EF001334): EV006426
  • Connection type (EF000124): Screwless terminal
  • Nominal voltage (EF000002): 250 V
  • Number of modules (module system) (EF009573): 2
  • Compatible with Apple HomeKit (EF014925): No
  • Eject-mechanism (EF001051): No
  • Compatible with Amazon Alexa (EF014927): No
  • Compatible with Google Assistant (EF014926): No
  • Number of ports USB-C (EF017049): 0
  • Min. depth of built-in installation box (EF012278): 30.5 mm
  • Imprint/indication (EF003823): Degree of protection (IP)

More info

▲

Product features

2P+T power bases with lid - IP 44 - Automatic terminals - To be equipped with finishing trim plate - Recessed or surface mounting - Fixing with screws or claws (included with the mechanism) - Supplied with plastic protector for protection during installation - Matte white

General features

Niloé Step - IP 44 power bases
