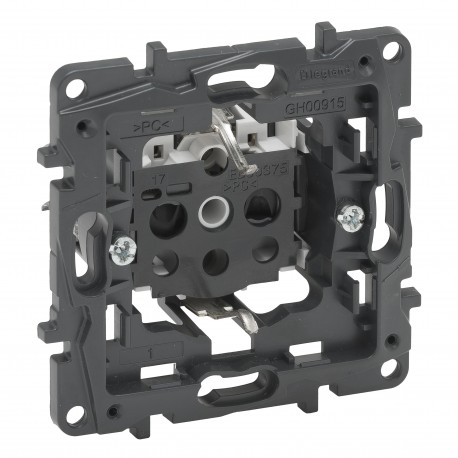

LEGRAND 864021 864021 LEGRAND NS-BASE 2P+T 16A TORN View larger
Images are for illustrative purposes only. Please refer to data sheet for details

864021 LEGRAND NS-BASE 2P+T 16A TORN

864021

864021

LEGRAND

10 Pcs.

NS-BASE 2P+T 16A TORN 2P+T Niloam Step Power Base - Screw Terminal - 16A - 250 V~ Niloé Step Power Base - 2P+T - terminal terminal - 16A - 250V~

Automation > Socket outlet
NILOÉ MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 864021 LEGRAND NS-BASE 2P+T 16A TORN is a flush-mounted electrical socket insert engineered to deliver dependable power distribution in standard wall configurations. These components provide the secure mechanical and electrical connection needed to feed portable electrical equipment safely. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Over voltage protection: No
  • Nominal current: 16 A
  • Rotated central insert: No
  • Material quality: Thermoplastic
  • Mounting method: Flush mounted
  • Special power supply: EV006426
  • Connection type: Screwed terminal
  • Fault current protection: No
  • Nominal voltage: 250 V
  • Number of modules (module system): 2
  • Compatible with Apple HomeKit: No
  • Eject-mechanism: No
  • Compatible with Amazon Alexa: No
  • Compatible with Google Assistant: No
  • Number of ports USB-C: 0
  • With hinged lid: No

More info

▲

Product features

Current base 2P+T 10/16A - 250 V~ - With protected sockets - Screw terminals - To be equipped with front and trim plate of finish - Recessed or surface mounting - Fixing with screws or claws (included with the mechanism) - Supplied with plastic protector for protection during installation

General features

Niloé Step - current bases
