View larger
Images are for illustrative purposes only. Please refer to data sheet for details

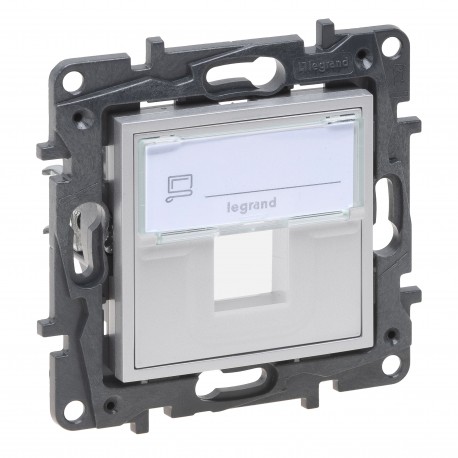

863387 LEGRAND NS-FRONTAL ADAPT. KEYSTONE ALUM
863387
863387
LEGRAND
5 Pcs.
NS-FRONTAL ADAPT. KEYSTONE ALUM
Single adapter for RJ 45 keystone Niloé Step connectors - aluminum
Automation > Insert/cover for communication technology
NILOÉ MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Adapter for an RJ 45 keystone type connector - Mechanism with bezel and bracket - To be equipped with finishing bezel plate - Recessed or surface mounting - Fixing with screws or claws (included with the mechanism) - Supplied with plastic protector for protection during installation - AluminumGeneral features
Niloé Step - RJ 45 keystone connector adapters| Feature Name | Feature Value |
|---|---|
| With dust cover (EF003893) | No |
| Material (EF002169) | Plastic |
| Shielded buses (EF002444) | No |
| Surface finishing (EF006569) | Matt |
| Shielded housing (EF002445) | No |
| Type of fastening (EF002442) | Other |
| Material quality (EF001257) | Thermoplastic |
| Halogen free (EF000025) | Yes |
| Mounting method (EF000003) | Flush mounted |
| With imprint (EF004048) | No |
| Number of modules (module system) (EF009573) | 1 |
| Transparent (EF006243) | No |
| Luster terminal (EF003868) | No |
| Surface protection (EF000139) | Untreated |
| With hinged lid (EF000117) | No |
| With strain relief (EF000878) | No |
| Support ring (EF005709) | No |
| RAL-number (similar) (EF003882) | 9040 |
| Utilization (EF000133) | Other |
| Suitable for degree of protection (IP) (EF006755) | IP20 |
| Device depth (EF008810) | 43.5 mm |
| With buses/couplings (EF005043) | No |
| Anti-bacterial treatment (EF023790) | No |
| Impact strength (EF004293) | IK04 |
| Imprintable label (EF001519) | Imprintable label snap-in in intermediate ring |
| Device width (EF008808) | 75.8 mm |
| Assembly arrangement (EF000005) | Basic unit with central cover plate |
| Device height (EF008809) | 75.8 mm |
| Outlet direction (EF000323) | Straight |
| Colour (EF000007) | Aluminium |
