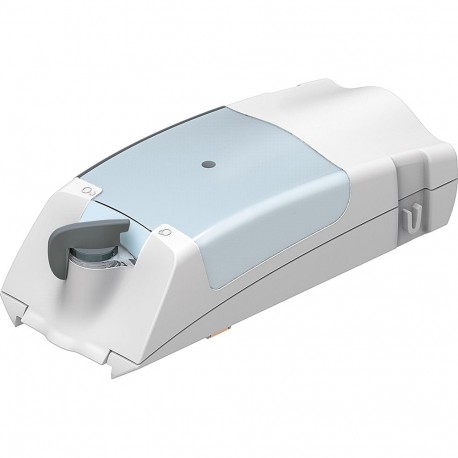

75007206 LEGRAND LBPLUS 25A CONEC TRI FUSE C
75007206
75007206
LEGRAND
2 Pcs.
Automation > Tap off unit for busbar trunk
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
75007206 LEGRAND LBPLUS 25A CONEC TRI FUSE C is a Legrand fused busbar connector configured to provide overcurrent protection for branch circuits tapped from a main busbar run. Fused tap-off units protect downstream equipment against electrical faults.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of CEE socket outlets (IEC 60309) (EF006577): 0
- Height (EF000040): 116 mm
- Branch off type (EF006674): Cable
- Degree of protection (IP) (EF005474): IP55
- Number of other socket outlets (EF006579): 0
- Rated voltage AC 50 Hz (EF007065): 0 V
- Rated current AC 50 Hz (EF007684): 25 A
- Number of poles (EF001391): 4
- Phase selection (EF001149): No
- With locking (EF000378): Yes
- Number of conductors (without earthing) (EF001148): 4
- Colour (EF000007): Grey
- Length (EF001438): 1240 mm
- Width (EF000008): 200 mm
More info
▲| Number of conductors (without earthing) | 4 |
|---|---|
| Number of poles | 4 |
| Current rating at 50 Hz AC | 25 A |
| Rated voltage at 50 Hz AC (Min-Max) | 0-400 V |
| Phase selection | No |
| With adjustment | Yes |
| Referral Type | Cable |
| Number of CEE sockets | 0 |
| Number of other power outlets | 0 |
|---|---|
| Execution of the plug | Other |
| Protection | none |
| Colour | Grey |
| Protection Class (IP) | IP55 |
| Longitude | 1240 mm |
| Width | 200 mm |
| Height | 116 mm |
