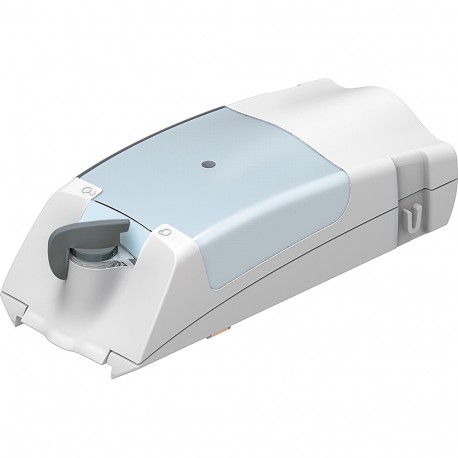

75007005 LEGRAND LBC SPINA 25A THREE-PHASE
75007005
75007005
LEGRAND
2 Pcs.
LBC SPINA 25A THREE-PHASE
25 A three-phase connector for LBplus lighting channel
Automation > Tap off unit for busbar trunk
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Three-phase 25A connector for LB PLUS and LB PLUS DATA
| Number of conductors (without earthing) | 4 |
|---|---|
| Number of poles | 4 |
| Current rating at 50 Hz AC | 25 A |
| Rated voltage at 50 Hz AC (Min-Max) | 0-400 V |
| Phase selection | No |
| With adjustment | Yes |
| Referral Type | Cable |
| Number of CEE sockets | 0 |
| Number of other power outlets | 0 |
|---|---|
| Execution of the plug | Other |
| Protection | none |
| Colour | Grey |
| Protection Class (IP) | IP55 |
| Longitude | 160 mm |
| Width | 71 mm |
| Height | 50 mm |
| Feature Name | Feature Value |
|---|---|
| Number of CEE socket outlets (IEC 60309) (EF006577) | 0 |
| Height (EF000040) | 50 mm |
| Branch off type (EF006674) | Cable |
| Degree of protection (IP) (EF005474) | IP55 |
| Protection (EF000781) | None |
| Number of other socket outlets (EF006579) | 0 |
| Type of socket outlets (EF007665) | Other |
| Rated voltage AC 50 Hz (EF007065) | 0 V |
| Rated current AC 50 Hz (EF007684) | 25 A |
| Number of poles (EF001391) | 4 |
| Phase selection (EF001149) | No |
| With locking (EF000378) | Yes |
| Number of conductors (without earthing) (EF001148) | 4 |
| Colour (EF000007) | Grey |
| Length (EF001438) | 160 mm |
| Width (EF000008) | 71 mm |
