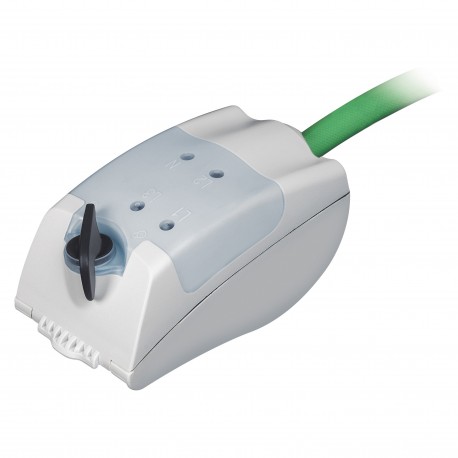

75005270 LEGRAND LBPLUS CONEC 16A FUS 3M CABL
75005270
75005270
LEGRAND
2 Pcs.
LBPLUS CONEC 16A FUS 3M CABL
Connector with 16A phase selection, 8.5x31.5 fuse holder and 3m FG16OM16 cable for LBplus lighting channel
LBplus connector phase selection 16A, fuse holder 8.5x31.5 + cable FG16OM16 3m
Automation > Tap off unit for busbar trunk
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand part number 75005270 is a fused busbar tap-off connector designed to provide overcurrent protection directly at the distribution branch. These components safeguard connected machinery against fault currents.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of CEE socket outlets (IEC 60309) (EF006577): 0
- Height (EF000040): 62 mm
- Branch off type (EF006674): Cable
- Degree of protection (IP) (EF005474): IP55
- Number of other socket outlets (EF006579): 0
- Rated voltage AC 50 Hz (EF007065): 0 V
- Rated current AC 50 Hz (EF007684): 16 A
- Number of poles (EF001391): 3
- Phase selection (EF001149): No
- With locking (EF000378): Yes
- Number of conductors (without earthing) (EF001148): 2
- Colour (EF000007): Grey
- Length (EF001438): 60 mm
- Width (EF000008): 3115 mm
More info
▲| Number of conductors (without earthing) | 2 |
|---|---|
| Number of poles | 3 |
| Current rating at 50 Hz AC | 16 A |
| Rated voltage at 50 Hz AC (Min-Max) | 0-400 V |
| Phase selection | No |
| With adjustment | Yes |
| Referral Type | Cable |
| Number of CEE sockets | 0 |
| Number of other power outlets | 0 |
|---|---|
| Execution of the plug | Other |
| Protection | none |
| Colour | Grey |
| Protection Class (IP) | IP55 |
| Longitude | 60 mm |
| Width | 3115 mm |
| Height | 62 mm |
