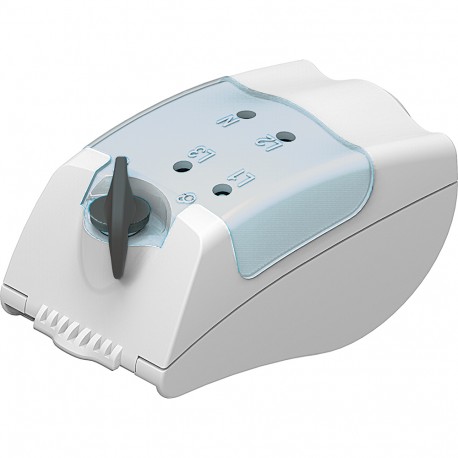

75005200 LEGRAND LBPLUS CONEC 16A PHASE SEL
75005200
75005200
LEGRAND
2 Pcs.
LBPLUS CONEC 16A PHASE SEL
Connector with 16A phase selection and 8.5x31.5 fuse holder for LBplus lighting channel
Phase selection connector 16A + 8.5x31.5 channel LBplus fuse holder
Automation > Tap off unit for busbar trunk
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand part number 75005200 is a phase-selectable busbar tap-off connector designed to optimize load distribution across available phases. This adaptable hardware simplifies circuit reconfiguration in industrial settings.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of CEE socket outlets (IEC 60309) (EF006577): 0
- Height (EF000040): 6 mm
- Branch off type (EF006674): Cable
- Degree of protection (IP) (EF005474): IP55
- Number of other socket outlets (EF006579): 0
- Rated voltage AC 50 Hz (EF007065): 0 V
- Rated current AC 50 Hz (EF007684): 16 A
- Number of poles (EF001391): 3
- Phase selection (EF001149): Yes
- With locking (EF000378): Yes
- Number of conductors (without earthing) (EF001148): 2
- Colour (EF000007): Grey
- Length (EF001438): 11.5 mm
- Width (EF000008): 6.2 mm
More info
▲| Number of conductors (without earthing) | 2 |
|---|---|
| Number of poles | 3 |
| Current rating at 50 Hz AC | 16 A |
| Rated voltage at 50 Hz AC (Min-Max) | 0-400 V |
| Phase selection | Yes |
| With adjustment | Yes |
| Referral Type | Cable |
| Number of CEE sockets | 0 |
| Number of other power outlets | 0 |
|---|---|
| Execution of the plug | Other |
| Protection | none |
| Colour | Grey |
| Protection Class (IP) | IP55 |
| Longitude | 11.5 mm |
| Width | 62 mm |
| Height | 60 mm |
