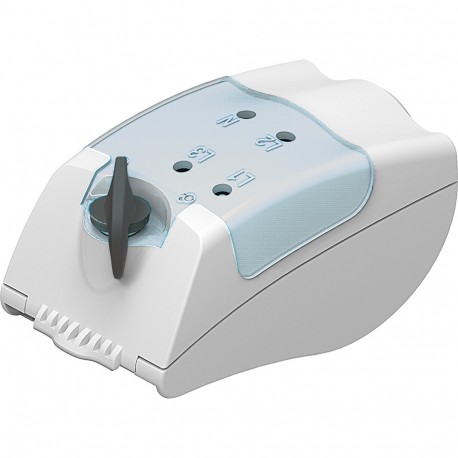

LEGRAND 75005100 75005100 LEGRAND LBPLUS CONEC 16A PHASE SEL View larger
Images are for illustrative purposes only. Please refer to data sheet for details

75005100 LEGRAND LBPLUS CONEC 16A PHASE SEL

75005100

75005100

LEGRAND

10 Pcs.

LBPLUS CONEC 16A PHASE SEL Phase selection connector equipped with a 5x20-6.3A fuse for LBplus lighting channel Phase selection connector 16A + 5x20 6.3A fuse - LBplus channel

Automation > Tap off unit for busbar trunk

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand LBPLUS CONEC 16A PHASE SEL phase selector connector component (part number 75005100) is utilized in busbar setups to route and distribute electrical current to designated circuits within industrial installations. Components of this type help operators manage phase allocation safely across automated grid layouts.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of CEE socket outlets (IEC 60309) (EF006577): 0
  • Height (EF000040): 6 mm
  • Branch off type (EF006674): Cable
  • Degree of protection (IP) (EF005474): IP55
  • Number of other socket outlets (EF006579): 0
  • Rated voltage AC 50 Hz (EF007065): 0 V
  • Rated current AC 50 Hz (EF007684): 16 A
  • Number of poles (EF001391): 3
  • Phase selection (EF001149): Yes
  • With locking (EF000378): Yes
  • Number of conductors (without earthing) (EF001148): 2
  • Colour (EF000007): Grey
  • Length (EF001438): 11.5 mm
  • Width (EF000008): 6.2 mm

More info

▲
Number of conductors (without earthing)2
Number of poles3
Current rating at 50 Hz AC16 A
Rated voltage at 50 Hz AC (Min-Max)0-400 V
Phase selectionYes
With adjustmentYes
Referral TypeCable
Number of CEE sockets0
Number of other power outlets0
Execution of the plugOther
Protectionnone
ColourGrey
Protection Class (IP)IP55
Longitude11.5 mm
Width62 mm
Height60 mm
