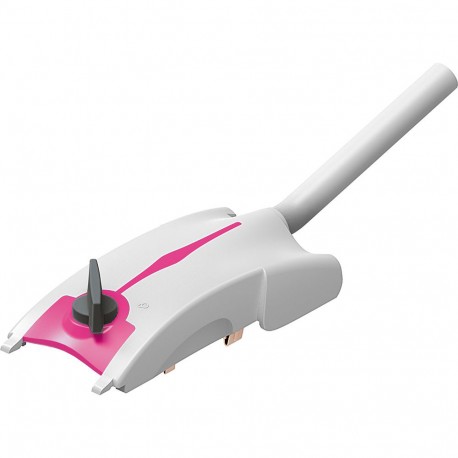

75005044 LEGRAND LBPLUS CONECT 10A L-N2 3M CABL
75005044
75005044
LEGRAND
1 Pcs.
Automation > Tap off unit for busbar trunk
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand part number 75005044 is a busbar tap-off connector utilized for establishing branch circuits from main electrical distribution trunking. This hardware ensures reliable power delivery to specific circuits within industrial installations.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of CEE socket outlets (IEC 60309) (EF006577): 0
- Height (EF000040): 60 mm
- Branch off type (EF006674): Socket outlet
- Degree of protection (IP) (EF005474): IP55
- Number of other socket outlets (EF006579): 0
- Rated voltage AC 50 Hz (EF007065): 0 V
- Rated current AC 50 Hz (EF007684): 10 A
- Number of poles (EF001391): 3
- Phase selection (EF001149): No
- With locking (EF000378): No
- Number of conductors (without earthing) (EF001148): 2
- Colour (EF000007): Grey
- RAL-number (EF000116): 7035
- Length (EF001438): 115 mm
- Width (EF000008): 62 mm
More info
▲| Number of conductors (without earthing) | 2 |
|---|---|
| Number of poles | 3 |
| Current rating at 50 Hz AC | 10 A |
| Rated voltage at 50 Hz AC (Min-Max) | 0-400 V |
| Phase selection | No |
| With adjustment | No |
| Referral Type | Outlet |
| Number of CEE sockets | 0 |
| Number of other power outlets | 0 |
| Execution of the plug | Other |
| Protection | none |
| Colour | Grey |
| RAL number | 7035 |
|---|---|
| Protection Class (IP) | IP55 |
| Longitude | 115 mm |
| Width | 62 mm |
| Height | 60 mm |
| Operating Temperature (Min-Max) | -5-50 °C |
| Storage Temperature (Min-Max) | -5-50 °C |
| Frequency (Min-Max) | 50-60 Hz |
| Display of markings on the connection terminals | Yes |
| Halogen-free | No |
| Connection Method | Plug clamp |
