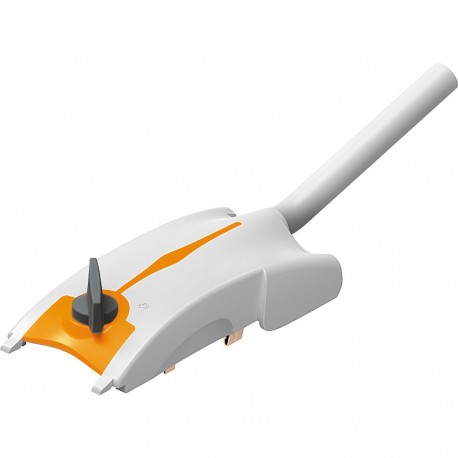

75005042 LEGRAND LBPLUS CONECT 10A L2-N 3M CABL
75005042
75005042
LEGRAND
1 Pcs.
Automation > Tap off unit for busbar trunk
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
75005042 LEGRAND LBPLUS CONECT 10A L2-N 3M CABL is a Legrand busbar tap-off plug designed to channel electrical power safely from overhead distribution tracks to workstation equipment. Modular tap-off units ensure adaptable power network configurations.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of CEE socket outlets (IEC 60309) (EF006577): 0
- Height (EF000040): 60 mm
- Branch off type (EF006674): Socket outlet
- Degree of protection (IP) (EF005474): IP55
- Number of other socket outlets (EF006579): 0
- Rated voltage AC 50 Hz (EF007065): 0 V
- Rated current AC 50 Hz (EF007684): 10 A
- Number of poles (EF001391): 3
- Phase selection (EF001149): No
- With locking (EF000378): No
- Number of conductors (without earthing) (EF001148): 2
- Colour (EF000007): Grey
- RAL-number (EF000116): 7035
- Length (EF001438): 115 mm
- Width (EF000008): 62 mm
More info
▲| Number of conductors (without earthing) | 2 |
|---|---|
| Number of poles | 3 |
| Current rating at 50 Hz AC | 10 A |
| Rated voltage at 50 Hz AC (Min-Max) | 0-400 V |
| Phase selection | No |
| With adjustment | No |
| Referral Type | Outlet |
| Number of CEE sockets | 0 |
| Number of other power outlets | 0 |
| Execution of the plug | Other |
| Protection | none |
| Colour | Grey |
| RAL number | 7035 |
|---|---|
| Protection Class (IP) | IP55 |
| Longitude | 115 mm |
| Width | 62 mm |
| Height | 60 mm |
| Operating Temperature (Min-Max) | -5-50 °C |
| Storage Temperature (Min-Max) | -5-50 °C |
| Frequency (Min-Max) | 50-60 Hz |
| Display of markings on the connection terminals | Yes |
| Halogen-free | No |
| Connection Method | Plug clamp |
