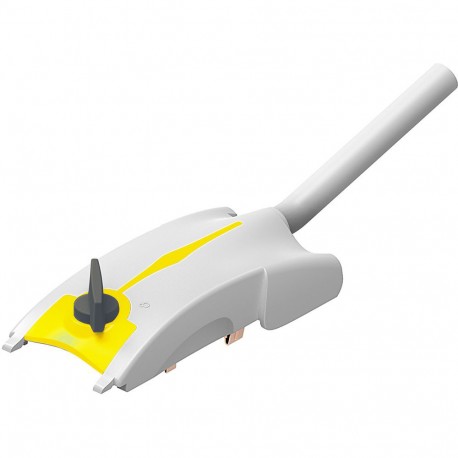

LEGRAND 75005034D 75005034D LEGRAND LBD WITH BUS 10A D1-D2 1M CABL View larger
Images are for illustrative purposes only. Please refer to data sheet for details

75005034D LEGRAND LBD WITH BUS 10A D1-D2 1M CABL

75005034D

75005034D

LEGRAND

1 Pcs.

LBD WITH BUS 10A D1-D2 1M CABL LBplus data branch connector with single data bus - 10A - 1m cable D1-D2 FG16OM16 LBplus data bus branch connector - 10A - 1m D1-D2 cable FG16OM16

Automation > Tap off unit for busbar trunk

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand part number 75005034D is a specialized busbar tap-off socket connector configured for structured electrical distribution systems. It ensures secure secondary circuit connections within industrial environments.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of CEE socket outlets (IEC 60309) (EF006577): 0
  • Height (EF000040): 60 mm
  • Branch off type (EF006674): Socket outlet
  • Degree of protection (IP) (EF005474): IP55
  • Number of other socket outlets (EF006579): 0
  • Rated voltage AC 50 Hz (EF007065): 0 V
  • Rated current AC 50 Hz (EF007684): 10 A
  • Number of poles (EF001391): 2
  • Phase selection (EF001149): No
  • With locking (EF000378): No
  • Number of conductors (without earthing) (EF001148): 2
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035
  • Length (EF001438): 115 mm
  • Width (EF000008): 62 mm

More info

▲
Number of conductors (without earthing)2
Number of poles2
Current rating at 50 Hz AC10 A
Rated voltage at 50 Hz AC (Min-Max)0-400 V
Phase selectionNo
With adjustmentNo
Referral TypeOutlet
Number of CEE sockets0
Number of other power outlets0
Execution of the plugOther
Protectionnone
ColourGrey
RAL number7035
Protection Class (IP)IP55
Longitude115 mm
Width62 mm
Height60 mm
Operating Temperature (Min-Max)-5-50 °C
Storage Temperature (Min-Max)-5-50 °C
Frequency (Min-Max)50-60 Hz
Display of markings on the connection terminalsYes
Halogen-freeNo
Connection MethodPlug clamp

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
