View larger
Images are for illustrative purposes only. Please refer to data sheet for details

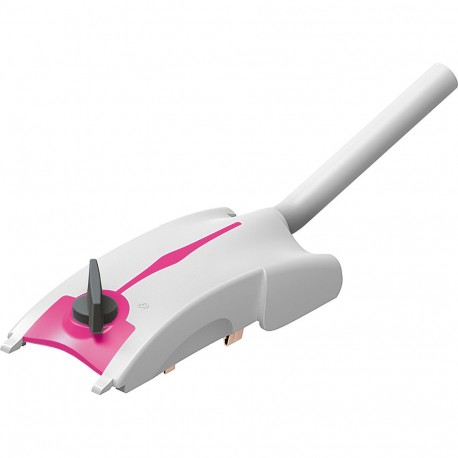

75005034 LEGRAND LBPLUS CONECT 10A L-N2 1M CABL
75005034
75005034
LEGRAND
1 Pcs.
LBPLUS CONECT 10A L-N2 1M CABL
Single-phase connector for LBplus lighting channel - LN - 2 - 10A with 1 meter halogen-free cable FG16OM16
Single-phase connector LBplus - LN-2 - 10A + halogen-free cable 1m FG16OM16
Automation > Tap off unit for busbar trunk
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Number of conductors (without earthing) | 2 |
|---|---|
| Number of poles | 3 |
| Current rating at 50 Hz AC | 10 A |
| Rated voltage at 50 Hz AC (Min-Max) | 0-400 V |
| Phase selection | No |
| With adjustment | No |
| Referral Type | Outlet |
| Number of CEE sockets | 0 |
| Number of other power outlets | 0 |
| Execution of the plug | Other |
| Protection | none |
| Colour | Grey |
| RAL number | 7035 |
|---|---|
| Protection Class (IP) | IP55 |
| Longitude | 115 mm |
| Width | 62 mm |
| Height | 60 mm |
| Operating Temperature (Min-Max) | -5-50 °C |
| Storage Temperature (Min-Max) | -5-50 °C |
| Frequency (Min-Max) | 50-60 Hz |
| Display of markings on the connection terminals | Yes |
| Halogen-free | No |
| Connection Method | Plug clamp |
| Feature Name | Feature Value |
|---|---|
| Number of CEE socket outlets (IEC 60309) (EF006577) | 0 |
| Height (EF000040) | 60 mm |
| Branch off type (EF006674) | Socket outlet |
| Degree of protection (IP) (EF005474) | IP55 |
| Protection (EF000781) | None |
| Number of other socket outlets (EF006579) | 0 |
| Type of socket outlets (EF007665) | Other |
| Rated voltage AC 50 Hz (EF007065) | 0 V |
| Rated current AC 50 Hz (EF007684) | 10 A |
| Number of poles (EF001391) | 3 |
| Phase selection (EF001149) | No |
| With locking (EF000378) | No |
| Number of conductors (without earthing) (EF001148) | 2 |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| Length (EF001438) | 115 mm |
| Width (EF000008) | 62 mm |
