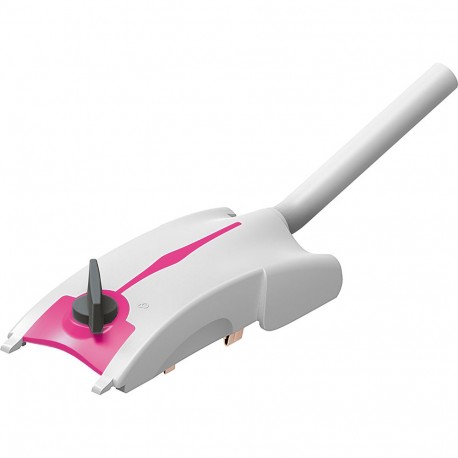

LEGRAND 75005024 75005024 LEGRAND LBPLUS CONEC 10A L-N2 3M CABLE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

75005024 LEGRAND LBPLUS CONEC 10A L-N2 3M CABLE

75005024

75005024

LEGRAND

4 Pcs.

LBPLUS CONEC 10A L-N2 3M CABLE Single-phase connector for LBplus lighting channel - L-N2 - 10A with 3 meter cable H05VVF Single-phase connector LBplus lighting channel - L-N2 -10A + 3m H05VVF cable

Automation > Tap off unit for busbar trunk

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand LBPLUS CONEC 10A L-N2 3M CABLE cable connector unit (part number 75005024) facilitates secure tap-off connections from distribution busbars to remote loads. Pre-wired connection accessories simplify installation steps in complex electrical networks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of CEE socket outlets (IEC 60309) (EF006577): 0
  • Height (EF000040): 32 mm
  • Branch off type (EF006674): Cable
  • Degree of protection (IP) (EF005474): IP55
  • Number of other socket outlets (EF006579): 0
  • Rated voltage AC 50 Hz (EF007065): 0 V
  • Rated current AC 50 Hz (EF007684): 10 A
  • Number of poles (EF001391): 3
  • Phase selection (EF001149): No
  • With locking (EF000378): Yes
  • Number of conductors (without earthing) (EF001148): 2
  • Colour (EF000007): Grey
  • RAL-number (EF000116): 7035
  • Length (EF001438): 50 mm
  • Width (EF000008): 3100 mm

More info

▲
Number of conductors (without earthing)2
Number of poles3
Current rating at 50 Hz AC10 A
Rated voltage at 50 Hz AC (Min-Max)0-400 V
Phase selectionNo
With adjustmentYes
Referral TypeCable
Number of CEE sockets0
Number of other power outlets0
Execution of the plugOther
Protectionnone
ColourGrey
RAL number7035
Protection Class (IP)IP55
Longitude50 mm
Width3100 mm
Height32 mm
