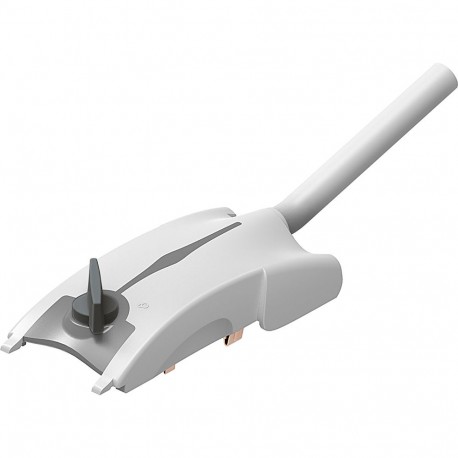

75005021 LEGRAND LBPLUS CONECT 10A L1-N 3M CABL
75005021
75005021
LEGRAND
4 Pcs.
LBPLUS CONECT 10A L1-N 3M CABL
Single-phase connector for LBplus lighting channel - L1-N - 10A with 3 meter cable H05VVF
Single-phase connector lighting channel LBplus - L1-N -10A + 3m cable H05VVF
Automation > Tap off unit for busbar trunk
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Legrand part number 75005021 is a busbar tap-off connector configured with an integrated cable branch type for electrical distribution networks. These units provide dependable connection points along modular busbar runs.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of CEE socket outlets (IEC 60309) (EF006577): 0
- Height (EF000040): 32 mm
- Branch off type (EF006674): Cable
- Degree of protection (IP) (EF005474): IP55
- Number of other socket outlets (EF006579): 0
- Rated voltage AC 50 Hz (EF007065): 0 V
- Rated current AC 50 Hz (EF007684): 10 A
- Number of poles (EF001391): 3
- Phase selection (EF001149): No
- With locking (EF000378): Yes
- Number of conductors (without earthing) (EF001148): 2
- Colour (EF000007): Grey
- RAL-number (EF000116): 7035
- Length (EF001438): 50 mm
- Width (EF000008): 3100 mm
More info
▲| Number of conductors (without earthing) | 2 |
|---|---|
| Number of poles | 3 |
| Current rating at 50 Hz AC | 10 A |
| Rated voltage at 50 Hz AC (Min-Max) | 0-400 V |
| Phase selection | No |
| With adjustment | Yes |
| Referral Type | Cable |
| Number of CEE sockets | 0 |
| Number of other power outlets | 0 |
| Execution of the plug | Other |
|---|---|
| Protection | none |
| Colour | Grey |
| RAL number | 7035 |
| Protection Class (IP) | IP55 |
| Longitude | 50 mm |
| Width | 3100 mm |
| Height | 32 mm |
