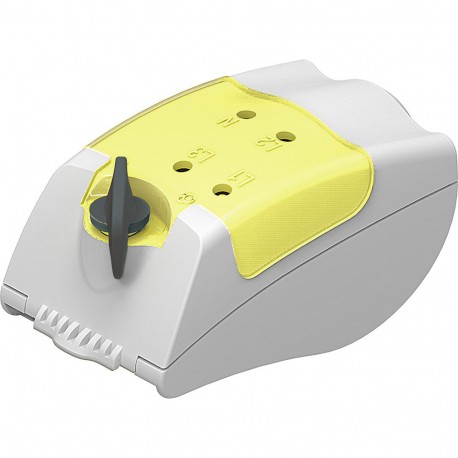

LEGRAND 75005006D 75005006D LEGRAND LBD WITH 16A BUS DALI L-N2 1M View larger
Images are for illustrative purposes only. Please refer to data sheet for details

75005006D LEGRAND LBD WITH 16A BUS DALI L-N2 1M

75005006D

75005006D

LEGRAND

1 Pcs.

LBD WITH 16A BUS DALI L-N2 1M LBplus power and data branch connector - 16A with DALI bus - 1m L1-N cable FG16OM16 LBplus Data 16A DALI bus power and branch connector 1m L1-N cable FG16OM16

Automation > Tap off unit for busbar trunk

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Legrand part number 75005006D is a busbar tap-off connector integrating DALI bus lines for advanced lighting control networks. Such combination fittings streamline power delivery and digital communication wiring.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Number of CEE socket outlets (IEC 60309) (EF006577): 0
  • Height (EF000040): 6 mm
  • Branch off type (EF006674): Cable
  • Degree of protection (IP) (EF005474): IP55
  • Number of other socket outlets (EF006579): 0
  • Rated voltage AC 50 Hz (EF007065): 0 V
  • Rated current AC 50 Hz (EF007684): 16 A
  • Number of poles (EF001391): 5
  • Phase selection (EF001149): No
  • With locking (EF000378): Yes
  • Number of conductors (without earthing) (EF001148): 4
  • Colour (EF000007): Grey
  • Length (EF001438): 11.5 mm
  • Width (EF000008): 6.2 mm

More info

▲
Number of conductors (without earthing)4
Number of poles5
Current rating at 50 Hz AC16 A
Rated voltage at 50 Hz AC (Min-Max)0-400 V
Phase selectionNo
With adjustmentYes
Referral TypeCable
Number of CEE sockets0
Number of other power outlets0
Execution of the plugOther
Protectionnone
ColourGrey
Protection Class (IP)IP55
Longitude11.5 mm
Width62 mm
Height60 mm
