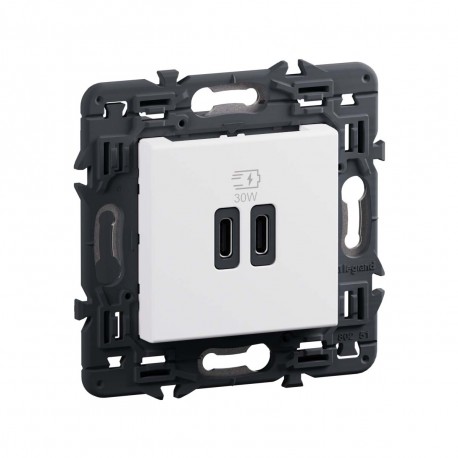

LEGRAND 741920 741920 LEGRAND VN-CHARGER USB C+C PD 30W BL View larger
Images are for illustrative purposes only. Please refer to data sheet for details

741920 LEGRAND VN-CHARGER USB C+C PD 30W BL

741920

741920

LEGRAND

1 Pcs.

VN-CHARGER USB C+C PD 30W BL Valena Next USB double charger base - Type C+C - 30W - 2 modules - White

Automation > USB power supply
NEXT VALENA MECHANISMS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Built as a Legrand 741920 USB power supply, this flush-mounted unit delivers multi-port power conversion directly from standard electrical installations. Such components are frequently selected for architectural and commercial environments to accommodate portable electronics. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): Flush mounted
  • Suitable for degree of protection (IP) (EF006755): IP40
  • Connection type (EF000124): Screwed terminal
  • Operating voltage (EF003983): 100 V
  • Device depth (EF008810): 45 mm
  • Impact strength (EF004293): IK04
  • Anti-bacterial treatment (EF023790): No
  • Number of ports USB-C (EF017049): 2
  • Min. depth of built-in installation box (EF012278): 40 mm
  • Output voltage (EF003933): 5 V
  • Power consumption (EF000346): 0.063 W
  • Device width (EF008808): 74 mm
  • Device height (EF008809): 74 mm
  • Colour (EF000007): White
  • Number of ports USB-A (EF000997): 0
  • RAL-number (EF000116): 9003

More info

▲

Overview

The USB charger allows two electronic terminals (mobiles, tablets) to be charged simultaneously. It fits perfectly with the Valena Next wiring device.

description
Double USB charger - type C + C - 3,000mA - 30W - To quickly charge mobile phones, tablets, smartphones, MP3 and MP4 players. Consumption in passive mode 0.08 W CLASS II SELV - Complies with the EEC directive on harmonization of the charging standard for portable terminals and the reduction of chargers for mobile phones - For installation in recessed box of minimum depth 40mm

specifications

ModelOther
Number of USB-A ports0
Number of USB-C ports2
Operating voltage100-240 V
frequency50-60 Hz
Maximum output current3000 mA
Output voltage5-20 V
Power consumption0.063 W
Connection MethodScrew-on terminal
Type of mountingRecessed mounted (plaster)
ColourWhite
Device width74 mm
Device height74 mm
Device Depth45 mm
Min. depth of the recessed box40 mm
Suitable for protection grade (IP)IP40
Impact resistanceIK04
Antibacterial treatmentNo
WirelessNo
Installation Depth35 mm
Operating Temperature5-40 °C
Storage temperature-20-70 °C
Type of voltageAC
Nominal Voltage100-240 V
Power DeliveryYes
Nominal current1-1 A
Neutral MandatoryYes
Display of markings on the connection terminalsYes
Compliant with commissioning tests (1000 V)No
Halogen-freeYes
Number of terminals2
Terminal capacity1.5-2.5 mm²
Connection Cable TypeFlexible or rigid
Core cross-section1.5-2.5 mm²
