View larger
Images are for illustrative purposes only. Please refer to data sheet for details

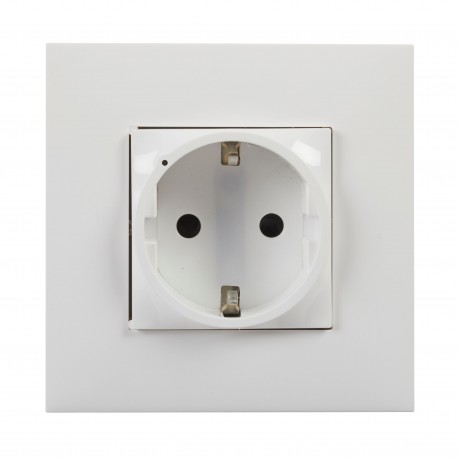

741811 LEGRAND VNwN-2P+T-WHITE
741811
741811
LEGRAND
1 Pcs.
VNwN-2P+T-WHITE
The base current is connected is used to control electrical equipment from a distance - can be associated with one or more commands lighting wireless for your remote control - allows you to control your consumption and receive notifications through the APP Home + Control Legrand - requires installation of Starter Pack - white
Connected power socket (Schuko standard) Valena Next w/Netatmo - White
Automation > Socket outlet
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
The base current is connected to measure the consumption of instant and accumulated - it Is compatible with all types of electrical equipment, especially electrical household appliances - Incorporates an additional protection built-in in the event of overloads exceeding 16 A - Allows for the configuration of the sending of notifications (damage, excess consumption, etc) - Use the same wiring (phase and neutral) that a base current traditional - can Be controlled from one or several commands of lighting and wireless from the command DAY/NIGHT and GET in/OUT - supplied with claws - can Be installed with clamps or screws (not supplied) - Requires installation of Starter Pack - WhiteGeneral characteristics
Valena Next with Netatmo - bases of current connected to - are provided with front finish, plate, dummy, and plastic cover - recessed mounting by means of claws or screws to a box universal| Feature Name | Feature Value |
|---|---|
| Over voltage protection (EF001332) | No |
| Rotated central insert (EF001331) | No |
| Material quality (EF001257) | Thermoplastic |
| Mounting method (EF000003) | Flush mounted |
| Special power supply (EF001334) | EV006426 |
| Connection type (EF000124) | Screwed terminal |
| Fault current protection (EF001333) | No |
| Nominal voltage (EF000002) | 240 V |
| Number of modules (module system) (EF009573) | 2 |
| Compatible with Apple HomeKit (EF014925) | Yes |
| Eject-mechanism (EF001051) | No |
| Compatible with Amazon Alexa (EF014927) | Yes |
| Compatible with Google Assistant (EF014926) | Yes |
| Number of ports USB-C (EF017049) | 0 |
| Min. depth of built-in installation box (EF012278) | 40 mm |
| Imprint/indication (EF003823) | None |
| With hinged lid (EF000117) | No |
| Number of ports USB-A (EF000997) | 0 |
| Metallic colour (EF015260) | No |
| With Wi-Fi signal repeater (EF013509) | No |
| Model (EF000010) | Socket outlet CEE 7/3 (type F) |
| Number of socket outlets switchable (EF008814) | 1 |
| Suitable for degree of protection (IP) (EF006755) | IP41 |
| Device depth (EF008810) | 44.5 mm |
| Impact strength (EF004293) | IK04 |
| Anti-bacterial treatment (EF023790) | No |
| Number of active contacts (square) (EF017115) | 0 |
| Protective contact (EF017116) | Other |
| Device width (EF008808) | 83 mm |
| With on/off switch (EF000488) | Yes |
| Device height (EF008809) | 83 mm |
| Colour (EF000007) | White |
| Number of active contacts (flat) (EF011999) | 0 |
| Number of active contacts (round) (EF011998) | 2 |
| Material (EF002169) | Plastic |
| With orientation lighting (EF008862) | No |
| Label space/information surface (EF001035) | No |
| Surface finishing (EF006569) | Glossy |
| Concurrently switching neutral conductor (EF005997) | No |
| Halogen free (EF000025) | Yes |
| Type of fastening (EF002442) | Mounting with claw and screw |
| With function lighting (EF008861) | Yes |
| Transparent (EF006243) | No |
| Colour of switch operator (EF015518) | White |
| Insulated mounting (EF001588) | No |
| Surface protection (EF000139) | Untreated |
| Frequency (EF000416) | 50 Hz |
| Number of phases (EF000351) | 1 |
| With signal lamp (EF000198) | Yes |
| Lockable (EF000113) | Yes |
| With built-in bluetooth speaker (EF016914) | No |
| With miniature fuse (EF006571) | No |
| IFTTT support available (EF011072) | No |
| Number of loop throughs (EF017971) | 1 |
| With enhanced contact protection (EF000389) | Yes |
| With loop through function (EF006604) | Yes |
