View larger
Images are for illustrative purposes only. Please refer to data sheet for details

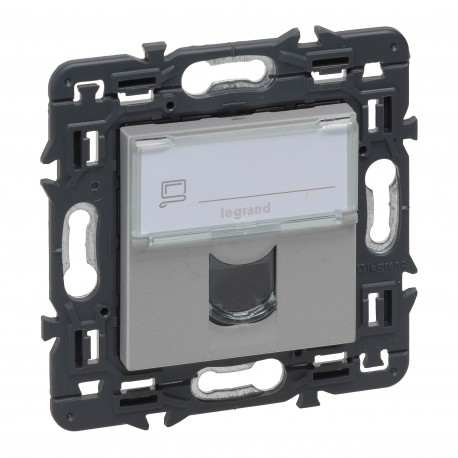

741375 LEGRAND VN-BASE 1XRJ45 UTP CAT.6 ALUM
741375
741375
LEGRAND
10 Pcs.
VN-BASE 1XRJ45 UTP CAT.6 ALUM
Software-based RJ-45 Valena Next - Cat.6 - UTP - single - rapid connection Toolless - aluminum
Valena Next RJ45 Computer Base - Cat.6 - UTP - Aluminum
Automation > Data communication connection box copper (twisted pair)
NEXT VALENA MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Databases cat. 6 RJ-45 UTP - Single - AluminumGeneral characteristics
Valena Next - basis for data - are supplied with cover plates, to equip with decks trim - mounting with screws or claws - Bases fast connection - no tools required - Contacts marked with dual colour code| Feature Name | Feature Value |
|---|---|
| Duct installation (EF002440) | No |
| With dust cover (EF003893) | No |
| Colour coding (EF007758) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| With label space (EF003456) | No |
| Shielded buses (EF002444) | No |
| Shielded housing (EF002445) | No |
| Separate earthing connection (EF002500) | No |
| Connection type (EF000124) | Insulation displacement connector |
| Type of fastening (EF002442) | Screwing |
| Floor box/subfloor mounted (EF003455) | No |
| With terminal resistor (EF005033) | No |
| Mechanical coding (EF002910) | No |
| RAL-number (EF000116) | 0 |
| Type of connector (EF002935) | RJ45 8(8) |
| Surface mounting (EF003681) | No |
| Separate strain relief (EF002450) | No |
| Mounting method shielding connection (EF002497) | None |
| Device depth (EF008810) | 37 mm |
| Compatible with third-party covers (EF004592) | No |
| With buses/couplings (EF005043) | Yes |
| Category (EF001619) | 6 |
| Device width (EF008808) | 74 mm |
| Assembly arrangement (EF000005) | Basic unit with full cover plate |
| Device height (EF008809) | 74 mm |
| Outlet direction (EF000323) | Straight |
| Colour (EF000007) | Aluminium |
| Suitable for number of connectors (EF001579) | 1 |
| Flush-mounted installation (EF007517) | Yes |
