View larger
Images are for illustrative purposes only. Please refer to data sheet for details

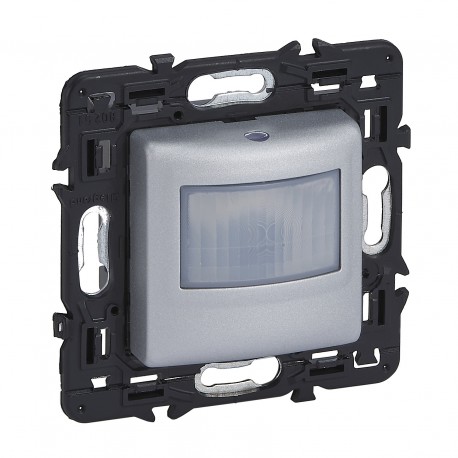

741360A LEGRAND VN-SENSOR IR 2H 32-100W ALU
741360A
741360A
LEGRAND
1 Pcs.
VN-SENSOR IR 2H 32-100W ALU
Valena Next automatic switch - with infrared detector - 2 - 100W - Aluminum
Automation > Movement sensor complete
NEXT VALENA MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
The Valena Next 2-wire circuit breaker allows automatic on/off by detecting presence when natural light is insufficient.
| Model | Motion Sensor |
|---|---|
| Motion sensor technology | Passive Infrared |
| Constant light dimming | No |
| Control de HVAC | No |
| Forced connection | No |
| Forced disconnection | No |
| Animal Zone | No |
| Creep Protection/Field Monitoring | No |
| Background monitoring | No |
| Networkable | No |
| Scanning angle | 170 ° |
| Optimal mounting height | 1.2 m |
| Stair Lighting Controller | Yes |
| Bypass switch | No |
| Side reach | 4 / |
| Detection field presence max. | 32 m² |
| Front Reach | 8 m |
| Suitable for wireless streaming | No |
| Remote control | Yes |
| With remote control | No |
| Adjustable response sensitivity | Yes |
| Adjustable response brightness | Yes |
| With signalling unit | Yes |
| Learn function for responsive brightness | No |
| Control function with control insert | No |
| Type of mounting | Recessed mounted (plaster) |
| Suitable for ceiling mounting | No |
| Suitable for wall mounting | Yes |
| Connection Method | Screw-on terminal |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen-free | Yes |
| Surface treatment | Varnishing |
| Surface Finish | Mate |
| Antibacterial treatment | No |
| Colour | aluminium |
| Transparent | No |
| Protection Class (IP) | IP20 |
| Impact resistance | IK04 |
| Type of voltage | AC |
| frequency | 50-60 Hz |
|---|---|
| Nominal Voltage | 110-240 V |
| Minimum duty cycle | 5 s |
| Maximum duty cycle | 30 min |
| Shutdown delay | 0 seconds |
| Power-on delay | 0 seconds |
| Horizontal detection angle | 85-85 ° |
| Sensor swivel angle, horizontal | 0-0 ° |
| Sensor swivel angle, vertical | 0-0 ° |
| Response brightness | 5-1275 lx |
| Max. switching power | 150 W |
| Maximum LED power | 100 W |
| Suitable for C-load | Yes |
| Number of switching zones | 1 |
| Input Extensions | Yes |
| Alarm function | No |
| With acoustic sensor | No |
| Ambient Temperature | 5-35 °C |
| Width | 74 mm |
| Height | 74 mm |
| Depth | 43 mm |
| Installation Depth | 25 mm |
| Min. depth of the recessed box | 30 mm |
| With connection cable | No |
| Connection cable length | 0 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Compatible IFTTT | No |
| Operating Temperature | 5-35 °C |
| Storage temperature | -10-70 °C |
| Standby consumption | 0.04 mA |
| Neutral Mandatory | No |
| Display of markings on the connection terminals | Yes |
| Terminal capacity | 1.5-2.5 mm² |
| Connection Cable Type | Flexible or rigid |
| Label Space/Print Area | No |
| Type of cable entry feedthroughs | Not applicable |
| Distance between horizontal clamping centers | 59.9-60.1 mm |
| Circuit breaker | Yes |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 74 mm |
| With remote control (EF000483) | No |
| Bridging switch (EF001099) | No |
| Suitable for ceiling mounting (EF021180) | No |
| Staircase light controller (EF001098) | Yes |
| Connection type (EF000124) | Screwed terminal |
| Material quality (EF001257) | Thermoplastic |
| Mounting method (EF000003) | Flush mounted |
| Min. switch-on time (EF006589) | 5 s |
| Compatible with Apple HomeKit (EF014925) | No |
| Detection angle horizontal (EF006582) | 85 ° |
| Compatible with Amazon Alexa (EF014927) | No |
| Compatible with Google Assistant (EF014926) | No |
| Min. depth of built-in installation box (EF012278) | 30 mm |
| Networkable (EF003904) | No |
| Response value sensitivity adjustable (EF003429) | Yes |
| Animal zone (EF006311) | No |
| Model (EF000010) | Movement sensor |
| With alarm function (EF005624) | No |
| Optimum mounting height (EF008011) | 1.2 m |
| Max. duty cycle (EF006590) | 30 min |
| Anti-bacterial treatment (EF023790) | No |
| Impact strength (EF004293) | IK04 |
| With acoustic sensor (EF017675) | No |
| Background monitoring (EF017674) | No |
| Connection cable length (EF003636) | 0 mm |
| Depth (EF000049) | 43 mm |
| Temperature (EF001731) | 5 °C |
| Substation input (EF003876) | Yes |
| Suitable for C-load (EF003832) | Yes |
| Colour (EF000007) | Aluminium |
| Width (EF000008) | 74 mm |
| With connection cable (EF005036) | No |
| Scan angle (EF004101) | 170 ° |
| With signal unit (EF003890) | Yes |
| Suitable for wireless transmission (EF001198) | No |
| Degree of protection (IP) (EF005474) | IP20 |
| Material (EF002169) | Plastic |
| Response value luminosity adjustable (EF007575) | Yes |
| Voltage type (EF000187) | AC |
| Surface finishing (EF006569) | Matt |
| Halogen free (EF000025) | Yes |
| Max. presence range (EF012569) | 32 m² |
| Transparent (EF006243) | No |
| Dim function with dimmer basic element (EF003808) | No |
| Max. switching power (EF001503) | 150 W |
| Forced switch off (EF003920) | No |
| Surface protection (EF000139) | Lacquered |
| Frequency (EF000416) | 50 Hz |
| Built-in depth (EF000218) | 25 mm |
| Remote operation (EF003848) | Yes |
| Switch-off delay (EF000194) | 0 s |
| Pivoting range sensor, vertical (EF009567) | 0 ° |
| Constant light control (EF003863) | No |
| Pivoting range sensor, horizontal (EF009566) | 0 ° |
| With DALI interface (EF009569) | No |
| Nominal voltage (EF005127) | 110 V |
| Max. reach sideways (EF001323) | 6 m |
| Number of switching zones (EF009568) | 1 |
| Max. reach frontally (EF001322) | 8 m |
| Switching-on delay (EF000193) | 0 s |
| IFTTT support available (EF011072) | No |
| Max. switching power LED (EF015953) | 100 W |
| Suitable for wall mounting (EF000664) | Yes |
| Creep-under protection (EF000147) | No |
| Forced switch on (EF011991) | No |
| Teach-function for response value luminosity (EF003898) | No |
| Response value luminosity (EF003814) | 5 lx |
| HVAC-control (EF003858) | No |
