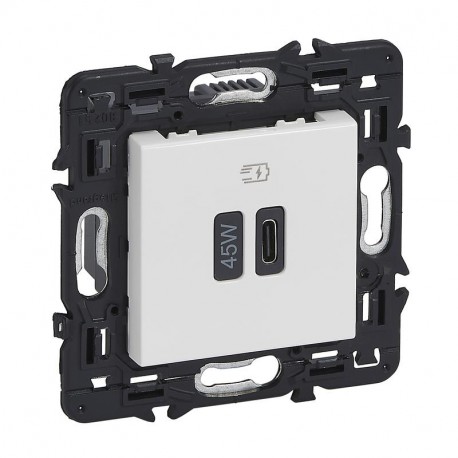

741239 LEGRAND VN-CHARGER USBC PD 45W BL
741239
741239
LEGRAND
1 Pcs.
Automation > USB power supply
NEXT VALENA MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A 741239 LEGRAND VN-CHARGER USBC PD 45W BL functions as a robust power supply insert capable of delivering high wattage directly from standard building electrical grids. These chargers are commonly integrated into conference rooms and office desks to support rapid power delivery for modern computing hardware.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Mounting method: Flush mounted
- Suitable for degree of protection (IP): IP40
- Connection type: Screwed terminal
- Operating voltage: 220 V
- Device depth: 45 mm
- Impact strength: IK04
- Anti-bacterial treatment: No
- Number of ports USB-C: 1
- Min. depth of built-in installation box: 40 mm
- Output voltage: 5 V
- Power consumption: 0.074 W
- Device width: 74 mm
- Device height: 74 mm
- Colour: White
- Number of ports USB-A: 0
- RAL-number: 9003
More info
▲Overview
The PowerDelivery Type-C USB charger allows you to power and charge devices such as PCs, tablets, smartphones, etc.
description
PowerDelivery USB type C charger that allows faster charging than conventional technologies. They work through an active exchange between the terminal and the charger. 45W - 3000mA. Standby mode consumption: 0.08W CLASS II SELV. Compliant with the EEC directive on harmonization of charging standard for portable terminals and reduction of chargers for mobile phones. For installation in recessed box with a minimum depth of 40mmspecifications
| Model | Other |
|---|---|
| Number of USB-A ports | 0 |
| Number of USB-C ports | 1 |
| Operating voltage | 220-240 V |
| frequency | 50-60 Hz |
| Maximum output current | 3000 mA |
| Output voltage | 5-20 V |
| Power consumption | 0.074 W |
| Connection Method | Screw-on terminal |
| Type of mounting | Recessed mounted (plaster) |
| Colour | White |
| Device width | 74 mm |
| Device height | 74 mm |
| Device Depth | 45 mm |
| Min. depth of the recessed box | 40 mm |
| Suitable for protection grade (IP) | IP40 |
| Impact resistance | IK04 |
| Antibacterial treatment | No |
|---|---|
| Wireless | No |
| Installation Depth | 35 mm |
| Operating Temperature | 5-40 °C |
| Storage temperature | -20-70 °C |
| Type of voltage | AC |
| Nominal Voltage | 220-240 V |
| Power Delivery | Yes |
| Nominal current | 0.8-0.8 A |
| Neutral Mandatory | Yes |
| Display of markings on the connection terminals | Yes |
| Compliant with commissioning tests (1000 V) | No |
| Halogen-free | Yes |
| Number of terminals | 2 |
| Terminal capacity | 1.5-2.5 mm² |
| Connection Cable Type | Flexible or rigid |
| Core cross-section | 1.5-2.5 mm² |
