View larger
Images are for illustrative purposes only. Please refer to data sheet for details

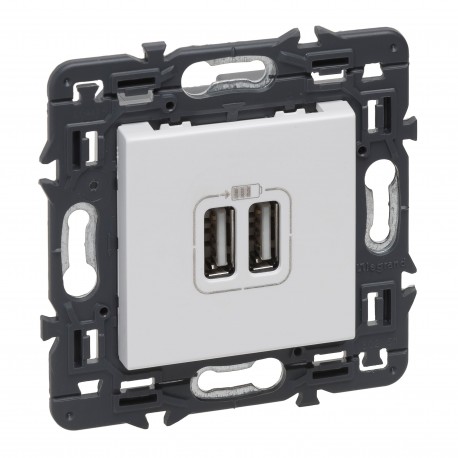

741231 LEGRAND VN-BASE 2XUSB TIPA 2.4 A WHITE
741231
741231
LEGRAND
1 Pcs.
VN-BASE 2XUSB TIPA 2.4 A WHITE
USB charger Valena Next - 2 USB - type A - 2.400 mA - 12 W - white
Valena Next USB Charger - 2 USB Type A+A - 2400mA - 15W - White
Automation > USB power supply
NEXT VALENA MECHANISMS
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Product features
Chargers USB - 2 USB - type A - 2.400 mA - 12 W - According to the standard IEC 62684-2011-01 - To quickly reload mobile phones, tablets, smartphones, MP3 and MP4 players. Releases a base - Consumption in passive mode < 0.1 W CLASS II SELV - According to the directive EEC on the harmonisation of the standard load for portable terminals and the reduction of chargers for mobile phones - For installation in flush mounting box minimum depth 40 mm - Allows for connection in shunt with 2P+T - Supplied without cable - WhiteGeneral characteristics
Valena Next - USB chargers| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Other |
| Mounting method (EF000003) | Flush mounted |
| Suitable for degree of protection (IP) (EF006755) | IP40 |
| Connection type (EF000124) | Screwed terminal |
| Operating voltage (EF003983) | 100 V |
| Device depth (EF008810) | 41 mm |
| Impact strength (EF004293) | IK04 |
| Anti-bacterial treatment (EF023790) | No |
| Number of ports USB-C (EF017049) | 0 |
| Min. depth of built-in installation box (EF012278) | 40 mm |
| Output voltage (EF003933) | 5 V |
| Power consumption (EF000346) | 0.068 W |
| Device width (EF008808) | 74 mm |
| Device height (EF008809) | 74 mm |
| Colour (EF000007) | White |
| Number of ports USB-A (EF000997) | 2 |
| RAL-number (EF000116) | 9003 |
| Max. output current (EF001315) | 3000 mA |
| Frequency (EF000416) | 50 Hz |
