694561 LEGRAND BMÚLT STD 4X2P+T 3M BL

694561

694561

LEGRAND

10 Pcs.

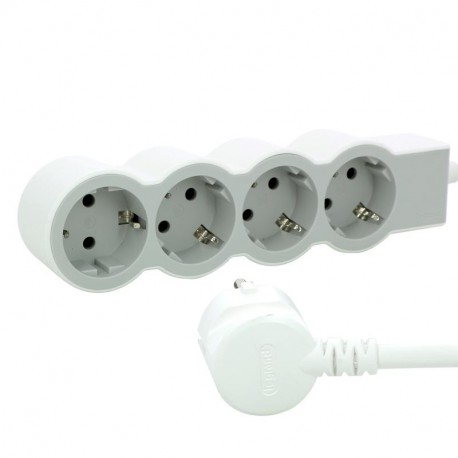

BMÚLT STD 4X2P+T 3M BL Standard multiple base with 4 2P+T sockets. 3m cable. Section 1.5mm². White and light grey colour Standard multiple base with 4 2P+T sockets. 3m cable. White and light grey

Automation > Multiple socket
MULTIPLE BASES

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Overview

To connect up to 4 devices with Schuko socket. Mainly for office or home use.

description
Standard multiple base with 4 power outlets 2P+T. 16A 230V 3680W max. It has a 90° angle socket to be able to connect a transformer without blocking another socket. The rest of the shots are oriented at 45°. To be placed on the surface or ground. Flat shape to slide under furniture. Prolipropylene material. 3G cable of 1.5 mm² in white PVC of 3 meters. Universal product for indoor use. Exclusive design and quality by Legrand. In white and light gray.

specifications

Housing shapeOther
Number of CEE sockets 7/16 (EURO)0
Number of sockets with EEC 7/3 protective contact (type F)4
Number of plugs with grounding pin0
Number of cold device outlets0
Number of grounded sockets (Danish standard)0
Number of French Standard Sockets (Type E)0
Number of Italian standard power outlets type Bipasso0
Number of Italian Standard Power Sockets Type P110
Number of Italian Standard P17 Power Sockets0
Number of NEMA plugs0
Number of Swiss Standard Type 13 sockets0
Number of Swiss Standard Type 15 Power Sockets0
Number of Swiss Standard Type 23 sockets0
Number of Swiss Standard Type 25 sockets0
With on/off switchNo
Differential switchNo
Number of universal multi-standard sockets0
EMC FilterNo
Number of other power outlets0
Number of USB connections0
Surge protectionNo
Nominal intensity16 A
Cross section1.5 mm²
With lidNo
MaterialPlastic
Material qualityThermoplastic
Halogen-freeYes
Antibacterial treatmentNo
Surface treatmentNo treatment
Surface FinishMate
ColourWhite
RAL number (similar)9003
TransparentNo
Protection Class (IP)IP20
Impact resistanceIK04
Feed Line Length3 m
NEMA Codenone
Operating Temperature-5-35 °C
Compatible with Apple HomeKitNo
Compatible with Google AssistantNo
Compatible with Amazon AlexaNo
Compatible IFTTTNo
Width209.5 mm
Height54 mm
Depth37.5 mm
Storage temperature-20-70 °C
Type of voltageAC
Nominal Voltage220-230 V
Neutral MandatoryYes
Connection MethodNot applicable
Type of mountingNot applicable
Connected ObjectNo

ETIM for 694561 Domestic wiring accessories and controls (EC000330)
Feature Name Feature Value
Number of socket outlets Swiss standard type 25 (EF011979) 0
Number of socket outlets Swiss standard type 23 (EF011978) 0
Number of socket outlets CEE 7/16 (EURO) (EF006620) 0
Number of socket outlets Swiss standard type 15 (EF011977) 0
Number of socket outlets Swiss standard type 13 (EF011975) 0
Over voltage protection (EF001332) No
Nominal current (EF000001) 16 A
Material quality (EF001257) Thermoplastic
Number of socket outlets Italian standard type P17 (EF012588) 0
Number of cold device socket outlets (EF006580) 0
Number of socket outlets Italian standard type Bipasso (EF009496) 0
Compatible with Apple HomeKit (EF014925) No
Compatible with Amazon Alexa (EF014927) No
Compatible with Google Assistant (EF014926) No
Length of power cord (EF000358) 3 m
Number of socket outlets Danish standard (earthing pin, type K) (EF013707) 0
RAL-number (similar) (EF003882) 9003
With cover (EF001187) No
Impact strength (EF004293) IK04
Anti-bacterial treatment (EF023790) No
With on/off switch (EF000488) No
Colour (EF000007) White
Degree of protection (IP) (EF005474) IP20
Material (EF002169) Plastic
Surface finishing (EF006569) Matt
Number of USB connections (EF008500) 0
Halogen free (EF000025) Yes
Number of NEMA-outlets (EF009514) 0
Number of socket outlets Italian standard type P11 (EF009513) 0
Transparent (EF006243) No
Number of universal multi standard sockets (EF012013) 0
Number of socket outlets with protective contact CEE 7/5 (type E) (EF014597) 0
Residual current circuit breaker (RCCB) (EF000412) No
Operating temperature (EF001742) -5 °C
Number of socket outlets with protective contact CEE 7/3 (type F) (EF000411) 4
Surface protection (EF000139) Untreated
Core cross section (EF000018) 1.5 mm²
Housing shape (EF000138) Other
Number of other socket outlets (EF006579) 0
IFTTT support available (EF011072) No
Mains filter (EF000947) No
NEMA designation (EF012001) None
