694502 LEGRAND BMÚLT COR ANG 3X2P+T A+C 1M BL
694502
694502
LEGRAND
1 Pcs.
BMÚLT COR ANG 3X2P+T A+C 1M BL

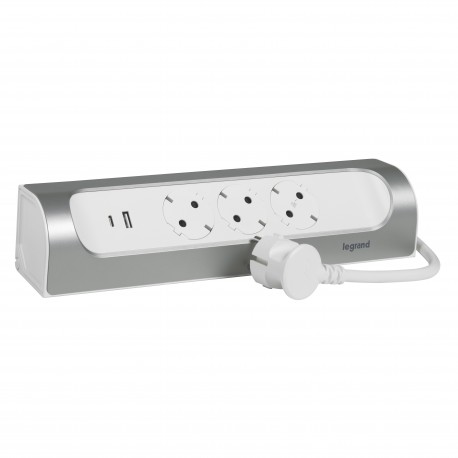

Angled multiple base with 3 flush sockets 2P+T, USB Type A+C. Installation adhesive or screw. Cable 1m. White and aluminium
Multiple base in angle 3x2P+T, USB Type A+C. Cable 1m. White and aluminium
Automation > Multiple socket
MULTIPLE BASES
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Designed for corner installations and desktop integration, the Legrand 694502 BMÚLT COR ANG 3X2P+T A+C 1M BL power strip provides convenient charging and outlet access. Modern workstations utilize these angular units to optimize desk space usage.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Number of socket outlets Swiss standard type 25 (EF011979): 0
- Number of socket outlets Swiss standard type 23 (EF011978): 0
- Number of socket outlets CEE 7/16 (EURO) (EF006620): 0
- Number of socket outlets Swiss standard type 15 (EF011977): 0
- Number of socket outlets Swiss standard type 13 (EF011975): 0
- Over voltage protection (EF001332): No
- Nominal current (EF000001): 16 A
- Material quality (EF001257): Thermoplastic
- Number of cold device socket outlets (EF006580): 0
- Compatible with Apple HomeKit (EF014925): No
- Compatible with Amazon Alexa (EF014927): No
- Compatible with Google Assistant (EF014926): No
- Length of power cord (EF000358): 1 m
- With cover (EF001187): No
- Impact strength (EF004293): IK04
- Anti-bacterial treatment (EF023790): No
More info
▲
Special angled multiple base for kitchen with 3 flush sockets 2P+T and USB type A and C 3.0A 5.0V 15.0W. They can be fixed at a 90° angle either horizontally or vertically using 3M brand adhesive tape provided in the pack or screws (not supplied). 16A 230V 3600W max. White 3G cable of 1meter length. 1.5MM2 cable section. Product with breakable side exits, removable back to pass the cable and storage area for the cable that facilitates its organization. Exclusive design and quality by Legrand. Aluminum and white color.
| Housing shape | Other |
|---|---|
| Number of sockets with EEC 7/3 protective contact (type F) | 3 |
| Number of French Standard Sockets (Type E) | 0 |
| Number of CEE sockets 7/16 (EURO) | 0 |
| Number of cold device outlets | 0 |
| Number of grounded sockets (Danish standard) | 0 |
| Number of Italian standard power outlets type Bipasso | 0 |
| Number of Italian Standard Power Sockets Type P11 | 0 |
| Number of Italian Standard P17 Power Sockets | 0 |
| Number of NEMA plugs | 0 |
| Number of Swiss Standard Type 13 sockets | 0 |
| Number of Swiss Standard Type 15 Power Sockets | 0 |
| Number of Swiss Standard Type 23 sockets | 0 |
| Number of Swiss Standard Type 25 sockets | 0 |
| Number of universal multi-standard sockets | 0 |
| With on/off switch | No |
| Differential switch | No |
| EMC Filter | No |
| Number of other power outlets | 0 |
| Number of USB connections | 2 |
| Surge protection | No |
| Nominal intensity | 16 A |
| Cross section | 1.5 mm² |
| With lid | No |
| Material | Plastic |
| Material quality | Thermoplastic |
|---|---|
| Halogen-free | Yes |
| Antibacterial treatment | No |
| Surface treatment | No treatment |
| Surface Finish | Mate |
| Colour | aluminium |
| Transparent | No |
| Protection Class (IP) | IP20 |
| Impact resistance | IK04 |
| Feed Line Length | 3 / |
| NEMA Code | none |
| Operating Temperature | -5-35 °C |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Compatible IFTTT | No |
| Width | 82 mm |
| Depth | 295 mm |
| Storage temperature | -20-70 °C |
| Type of voltage | AC/DC |
| Nominal Voltage | 220-230 V |
| Neutral Mandatory | Yes |
| Connection Method | Not applicable |
| Type of mounting | Surface mounted (plaster) |
| Connected Object | No |
