689622 LEGRAND BOX FLOOR IP44 8-24MM
689622
689622
LEGRAND
1 Pcs.
Automation > Installation box for underfloor-installation
COLUMN WIRING MANAGEMENT
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

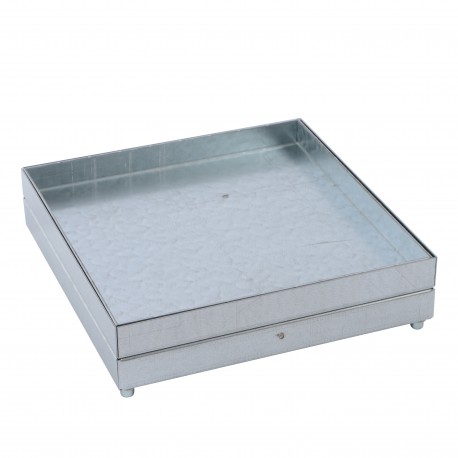

A Legrand floor box assembly, designated as part number 689622, provides a weather-resistant and structurally sound housing for electrical services integrated into finished floors. This category of enclosure is frequently installed in environments requiring reliable power distribution beneath foot traffic areas while preventing dust and moisture ingress. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Depth of flooring recess (EF005356): 15 mm
- With opening carpeting (EF004541): Yes
- Surface protection housing (EF024150): Galvanised
- Width built-in dimension (EF004566): 262.4 mm
- Protective frame carpeting (EF004543): No
- Cover model (EF009212): Square
- Number of socket outlets British Standard BS 1363 (EF012037): 0
- Suitable for wet cleaning (EF005109): No
- Length built-in dimension (EF004875): 262.4 mm
- Min. built-in depth (EF005027): 78.5 mm
- Outer length (EF024679): 262.4 mm
More info
▲- Pack (number of units)1
- Volume (dm3)6.429
- Weight (g)2 347.00
- To be installed in backbox Cat.No 0 896 04 for screed floor system
- Edge trim for tile 8 to 24 mm thickness
- Can be used as access trap for junction, or equipped with 1 kit of vertical supports Cat.No 6 896 57
- No cable exit
- Conforms to IEC/EN 60670-23
- Compatible with screed floor system
