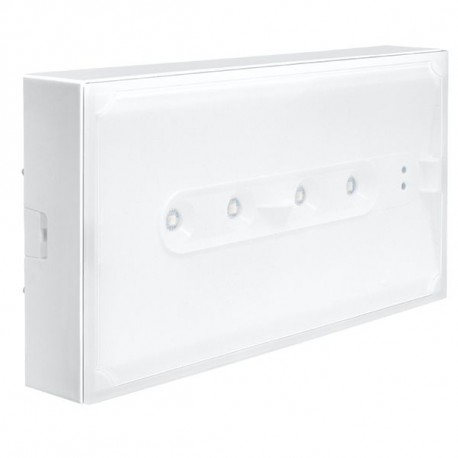

LEGRAND 661632 661632 LEGRAND URAONE 160LM 1H IP42 P/NP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

661632 LEGRAND URAONE 160LM 1H IP42 P/NP

661632

661632

LEGRAND

1 Pcs.

URAONE 160LM 1H IP42 P/NP Emergency luminaire URA ONE - standard Maintained/Non maintained - 1h - 160 lm - LED URA ONE Emergency Luminaire - 160 lumens - 1h - P/NP

Automation > Emergency luminaire

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
  • Pack (number of units)1
  • Volume (dm3)1.236
  • Weight (g)471.00
Product characteristics
Standard luminaires
  • Require normal lightingmanual switching off in order test emergency lighting
Maintained/Non-maintained (M/NM)
  • Can also operate in Non-maintained mode according to the wiring of normal lighting
  • 160 lm - 1h (LEDs)
General characteristics
URA ONE - indoor self-contained emergency lighting luminaire LED
  • LED non-maintained and maintained units
  • Certified to IEC and EN 60598-2-22 standards
  • High power LEDs with optimized lighting distribution
  • Low consumption switching power supply. Fully recyclable
  • Plug-in back with pre-cutted holes grid to ease installation and maintenance
  • Automatic terminals with high capacity: 2 x 2.5mm². IP 42 - IK 07
  • Duration: 1 and 3 hours. Ni-Cd or Ni-MH batteries. Recharge time: 24 hours. Charge monitor with a green LED. Opal diffuser
  • Power supply: 230 V~ ± 10% - 50/60 Hz. Class II
  • Flat flush-mounting integration into ceiling and wall with flush-mounting frame Cat.Nos 6 616 50/51
  • Decorative frame to enhance surface-mounting aesthetic integration Cat.Nos 6 616 54/55

ETIM for 661632 Luminaires (EC001957)
Feature Name Feature Value
Conductor cross section (EF000085) 2.5 mm²
With remote control (EF000483) No
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 (EF006420) No
Lamp type (EF002423) LED non-replaceable
Mounting method (EF000003) Wall surface mounted
Connection type (EF000124) Screw connection
Material cover (EF004284) Plastic opal
With remote switch connection (EF007947) No
Max. system power (EF009347) 16 W
Colour temperature (EF009346) 6000 K
Rated luminous flux according to IEC 62722-2-1 (EF009349) 160 lm
Number of lighting heads (EF004258) 1
Nominal current (EF009345) 70 mA
Impact strength (EF004293) IK07
Monitoring equipment (EF008091) None
Protection class according to IEC 61140 (EF000004) II
Lamp holder (EF000048) Other
Height/depth (EF001456) 41 mm
With pictogram (EF011099) No
Width (EF000008) 110 mm
Type of control gear (EF000381) LED driver constant current
Degree of protection (IP) (EF005474) IP42
Luminous flux in standby mode (EF011954) 100 lm
Suitable for labelling type (EF001277) Sticker
Housing material (EF001596) Plastic
Voltage type (EF000187) AC
Type of indicator (EF001278) Single-sided
Number of poles (EF001391) 5
Housing colour (EF000136) White
Light distributor (EF012170) Diffuser
With light source (EF005905) Yes
Function (EF000030) Escape route lighting/signage
Nominal voltage (EF005127) 230 V
Power supply system (EF000233) Peripheral (individual battery)
Battery technology (EF004351) NiCd
Nominal operation time (EF012518) 1 h
Rated life time L70/B50 at 25 °C (EF011870) 147000 h
Length (EF001438) 210 mm
Suitable for continuous circuit (EF017056) Yes
