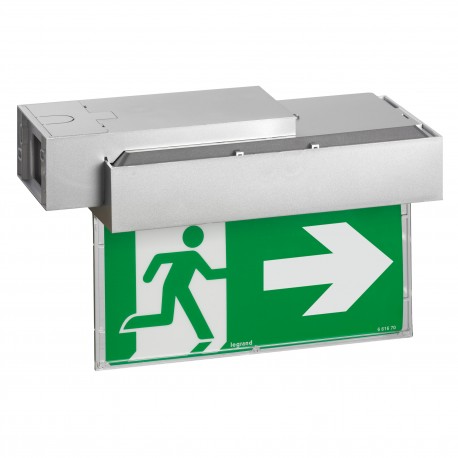

661631 LEGRAND URAONE 100LM 1H IP42 P/NP
661631
661631
LEGRAND
1 Pcs.
Automation > Emergency luminaire
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The 661631 LEGRAND URAONE 100LM 1H IP42 P/NP is a surface-mounted emergency lighting luminaire designed to illuminate escape routes and building exits during power interruptions. Fixtures of this kind are commonly deployed in commercial corridors, industrial facilities, and public spaces to ensure safe evacuation under low-visibility emergency conditions. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Conductor cross section (EF000085): 2.5 mm²
- With remote control (EF000483): No
- Lamp type (EF002423): LED non-replaceable
- Mounting method (EF000003): Wall surface mounted
- Connection type (EF000124): Screw connection
- Material cover (EF004284): Plastic opal
- With remote switch connection (EF007947): No
- Max. system power (EF009347): 10 W
- Colour temperature (EF009346): 6000 K
- Rated luminous flux according to IEC 62722-2-1 (EF009349): 100 lm
- Number of lighting heads (EF004258): 1
- Nominal current (EF009345): 43 mA
- Impact strength (EF004293): IK07
- Protection class according to IEC 61140 (EF000004): II
- Height/depth (EF001456): 41 mm
- With pictogram (EF011099): No
More info
▲- Pack (number of units)1
- Volume (dm3)1.538
- Weight (g)428.00
- Require normal lightingmanual switching off in order test emergency lighting
- Can also operate in Non-maintained mode according to the wiring of normal lighting
- 100 lm - 1h (LEDs)
- LED non-maintained and maintained units
- Certified to IEC and EN 60598-2-22 standards
- High power LEDs with optimized lighting distribution
- Low consumption switching power supply. Fully recyclable
- Plug-in back with pre-cutted holes grid to ease installation and maintenance
- Automatic terminals with high capacity: 2 x 2.5mm². IP 42 - IK 07
- Duration: 1 and 3 hours. Ni-Cd or Ni-MH batteries. Recharge time: 24 hours. Charge monitor with a green LED. Opal diffuser
- Power supply: 230 V~ ± 10% - 50/60 Hz. Class II
- Flat flush-mounting integration into ceiling and wall with flush-mounting frame Cat.Nos 6 616 50/51
- Decorative frame to enhance surface-mounting aesthetic integration Cat.Nos 6 616 54/55
