> LEGRAND > BALIZED PILOTS > 660912

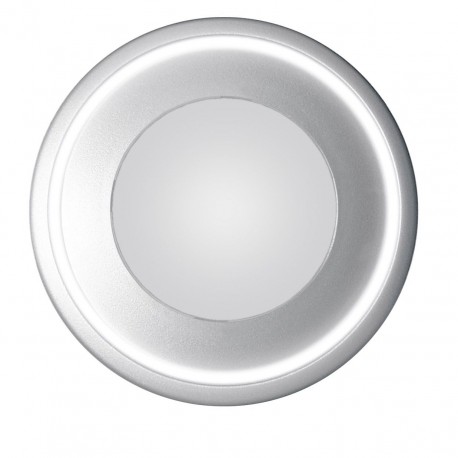

LEGRAND 660912 660912 LEGRAND LIPSO P. BALIZ. AUT.FRONT BL. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

660912 LEGRAND LIPSO P. BALIZ. AUT.FRONT BL.

660912

660912

LEGRAND

1 Pcs.

LIPSO P. BALIZ. AUT.FRONT BL. Pilot beacon LIPSO - standalone - IP44 - front - white

Automation > Emergency luminaire
BALIZED PILOTS

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Product features

Pilot beacon LIPSO - Standalone - IP44 - IK07 - Light signaling front - emergency Lighting in white color - emergency Lighting in white color

General characteristics

Pilots marked LIPSO - Power supply: 230 V ± 10 % - 50/60 Hz. Class II - luminous Flux: 1,5 lumens - Led maintenance free - battery life: 1 hour - Batteries Ni-Cd 2.4 V -2/3 AAA - Indicators of battery charge - Start-at rest with remote control - Terminals of screw for 2 cables of 1,5mm2 - mounting box for 1 screw necesiadad leveling - Are installed in the flush box itself, universal enclosure or partition Plasterboard type - Finish zamak, aluminum color

ETIM for 660912 Luminaires (EC001957)
Feature Name Feature Value
Conductor cross section (EF000085) 2.5 mm²
With remote control (EF000483) No
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 (EF006420) No
Lamp type (EF002423) LED non-replaceable
Mounting method (EF000003) Built-in
Connection type (EF000124) Screw connection
Material cover (EF004284) Plastic opal
Built-in height/depth (EF023518) 41 mm
With remote switch connection (EF007947) No
Max. system power (EF009347) 0.4 W
Colour temperature (EF009346) 5500 K
Recognition distance (EF008732) 15 m
Number of lighting heads (EF004258) 1
Nominal current (EF009345) 1.6 mA
Impact strength (EF004293) IK07
Monitoring equipment (EF008091) None
Protection class according to IEC 61140 (EF000004) II
Lamp holder (EF000048) Other
Height/depth (EF001456) 48 mm
With pictogram (EF011099) No
Width (EF000008) 58 mm
Built-in width (EF000846) 50 mm
Type of control gear (EF000381) LED driver constant current
Built-in length (EF004265) 50 mm
Degree of protection (IP) (EF005474) IP44
Luminous flux in standby mode (EF011954) 0 lm
Housing material (EF001596) Aluminium
Voltage type (EF000187) AC
Number of poles (EF001391) 4
Housing colour (EF000136) Aluminium
Outer diameter (EF000015) 58 mm
Light distributor (EF012170) Diffuser
With light source (EF005905) Yes
Nominal voltage (EF005127) 207 V
Power supply system (EF000233) Peripheral (individual battery)
Battery technology (EF004351) NiMH
Nominal operation time (EF012518) 1 h
Length (EF001438) 58 mm
Built-in diameter (EF000943) 50 mm
Suitable for continuous circuit (EF017056) Yes

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
